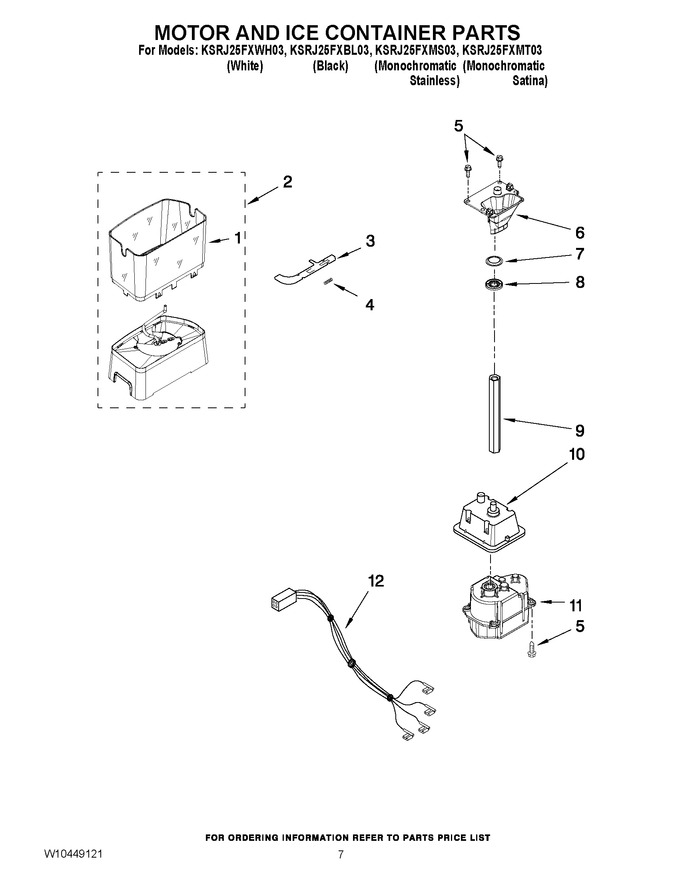

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10364691		Ice Bin Upper		Appelez-nous	-
2	W10353212		Ice Container Assy (complete)		Appelez-nous	-
3	W10166863		Latch, Bin		Appelez-nous	-
4	WP2198608		Spring, Latch   (Replaces: 2198608)				$ 7.55
5	WP8281163		Screw   (Replaces: 8281163)			Immediately	$ 10.70
6	W10286869		Plate, Mtg		Appelez-nous	-
7	WP2198628		Seal   (Replaces: 2198628)			Immediately	$ 12.57
8	W10317615		Retainer Clip		Appelez-nous	-
9	W10317613		Drive Shaft		Appelez-nous	-
10	W11678273		Enclosure, Motor   (Replaces: W10258546)			Immediately	$ 77.02
11	W10822606		Dispenser, Motor   (Replaces: W10215646)			Immediately	$ 156.54
12	W10295559		Wire Harness, Idi Motor		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
