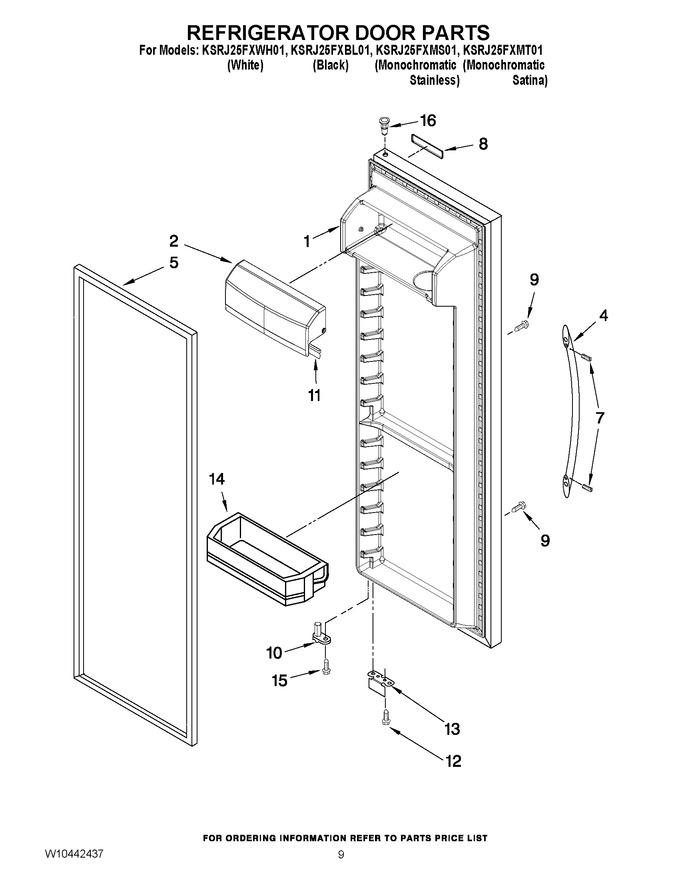

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10317884 | Refrigerator Door (includes Item 5) (black) |
|
- | |||||
| 1 | W10318395 | Refrigerator Door (includes Item 5) (mono Stainless) |
|
- | |||||
| 1 | W10297378 | Refrigerator Door (includes Item 5) (mono Satina) |
|
- | |||||
| 1 | W10297353 | Refrigerator Door (includes Item 5) (white) |
|
- | |||||
| 2 | 2301486 | Door, Compartment |
|
- | |||||
| 4 | 2319727S | Handle (stainless Steel) |
|
$ 133.96 | |||||
| 4 | 2319727W | Handle (white) |
|
$ 106.80 | |||||
| 4 | 2319727B | Handle (black) |
|
$ 109.87 | |||||
| 5 | WPW10136734 | Door Gasket, Magnetic (apollo Gray) (Replaces: 2326338) |
|
$ 335.39 | |||||
| 5 | 2159083 | Door Gasket, Magnetic (black) (Replaces: 2221313) |
|
$ 251.49 | |||||
| 5 | 2159075 | Door Gasket, Magnetic (mist Beige) (Replaces: 2221302) |
|
Immediately | $ 333.00 | ||||
| 7 | W11366418 | Set Screw (chrome) (Replaces: W10010140) |
|
Immediately | $ 15.79 | ||||
| 7 | WPW10010150 | Set Screw (black) (Replaces: W10010150) |
|
$ 8.57 | |||||
| 8 | WPW10243392 | Nameplate (black) (Replaces: W10243392) |
|
$ 73.70 | |||||
| 8 | WPW10243393 | Nameplate (white) (Replaces: W10243393) |
|
$ 69.98 | |||||
| 8 | WPW10243391 | Nameplate (gray) (Replaces: W10243391) |
|
$ 58.31 | |||||
| 9 | WPW10170540 | Stud/screw (Replaces: W10170540) |
|
Immediately | $ 8.51 | ||||
| 10 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 11 | 2159124 | Gasket |
|
- | |||||
| 12 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 13 | W10219808 | Bracket, Door Stop (black) |
|
- | |||||
| 13 | W10219805 | Bracket, Door Stop (white) |
|
- | |||||
| 14 | WP2223434K | Door Bin (Replaces: 2223434) |
|
Immediately | $ 102.08 | ||||
| 15 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 16 | WP2182181 | Thimble-top (Replaces: 2200087) |
|
$ 8.15 |
