01 - Cabinet Parts

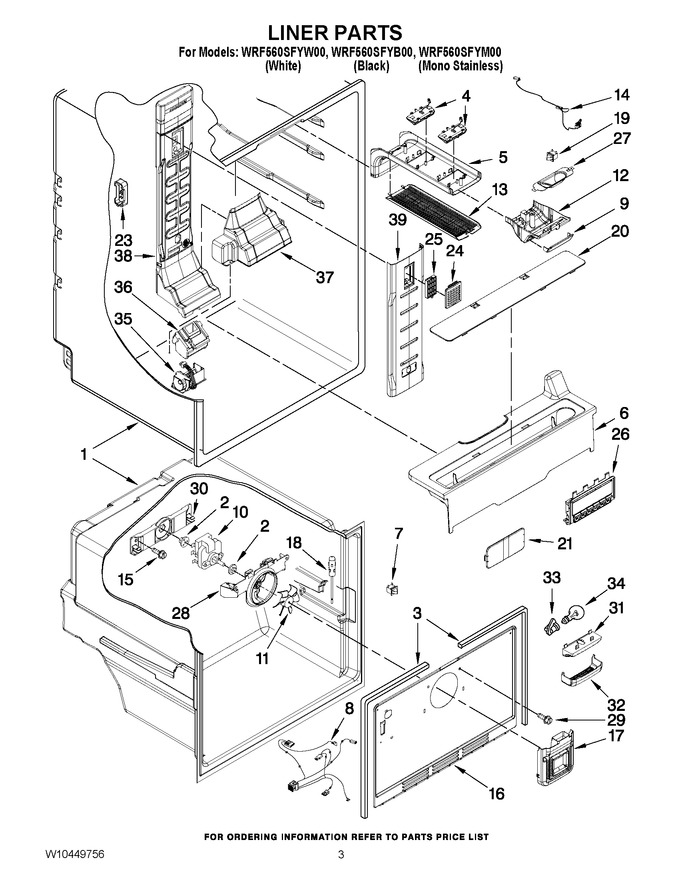

02 - Liner Parts
03 - Shelf Parts
04 - Freezer Door Parts
05 - Refrigerator Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WP2264462 | Grommet (2) (Replaces: 2197380) |
|
Immediately | $ 46.17 | ||||
| 3 | WP2254360 | Gasket, Evaporator Cover (2) (Replaces: 2254359) |
|
$ 28.12 | |||||
| 4 | WPW10360497 | Led Light Assembly, Rc (Replaces: W10360497) |
|
$ 208.79 | |||||
| 5 | W10469878 | Housing, Light Rc (Replaces: W10359399) |
|
Immediately | $ 122.03 | ||||
| 6 | W10798439 | Water Reservoir Container (Replaces: W10326338) |
|
$ 179.92 | |||||
| 7 | W11396033 | Switch, Rocker Arm (Replaces: 12466105) |
|
Immediately | $ 37.30 | ||||
| 8 | WPW10283809 | Wire Assembly, Evaporator Fan (Replaces: W10283809) |
|
$ 129.30 | |||||
| 9 | W10360550 | Cover, Control Housing |
|
$ 76.27 | |||||
| 10 | WP2315539 | Fan Motor (Replaces: 2315539) |
|
Immediately | $ 83.25 | ||||
| 11 | WP2163777 | Fan Blade (Replaces: 2200509) |
|
Immediately | $ 66.15 | ||||
| 12 | WPW10435634 | Control Housing (Replaces: W10435634) |
|
Immediately | $ 97.60 | ||||
| 13 | W10404442 | Cover, Rc Light |
|
- | |||||
| 14 | W10421350 | Wire Assembly, Rc Lighting |
|
$ 104.09 | |||||
| 15 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 16 | W10300900 | Cover, Evaporator |
|
$ 242.16 | |||||
| 17 | W11227949 | Fc Tower (Replaces: W10317182) |
|
$ 107.22 | |||||
| 18 | WPW10383615 | Thermistor, Fc (Replaces: W10383615) |
|
Immediately | $ 47.51 | ||||
| 19 | W11384469 | Rocker Arm (2) Switch (Replaces: 1118894) |
|
Immediately | $ 39.09 | ||||
| 20 | W10413160 | Cover, Water Reservoir |
|
$ 113.14 | |||||
| 21 | W11082834 | Ui Assembly, Sparsh (Replaces: W10401673) |
|
$ 409.61 | |||||
| 23 | WPW10425252 | Cover, Thermistor (Replaces: W10356630) |
|
Immediately | $ 88.38 | ||||
| 24 | WPW10330850 | Grille, Air Filter (Replaces: W10330850) |
|
$ 37.56 | |||||
| 25 | 2319308 | Antibacterial Filter |
|
- | |||||
| 26 | W10336009 | Screw Cup |
|
$ 77.40 | |||||
| 27 | WPW10314195 | Shield, Heat (Replaces: W10314195) |
|
$ 101.34 | |||||
| 28 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 32.47 | ||||
| 29 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 30 | 2254454 | Bracket Evap. Fan, Rear |
|
Immediately | $ 75.44 | ||||
| 31 | WPW10313917 | Housing, Lighting Fc (Replaces: W10313917) |
|
Immediately | $ 91.07 | ||||
| 32 | WPW10313918 | Light Cover, Fc (Replaces: W10313918) |
|
Immediately | $ 95.34 | ||||
| 33 | WPW10191429 | Light Socket, Fc (Replaces: W10191429) |
|
$ 8.80 | |||||
| 34 | WPA3073101 | Light Bulb, Fc (Replaces: 2326255) |
|
Immediately | $ 12.72 | ||||
| 35 | WPW10257451 | Damper, Electronic Control (Replaces: W10257451) |
|
Immediately | $ 164.18 | ||||
| 36 | W11133099 | Cover, Damper Housing (Replaces: W10322093) |
|
Immediately | $ 106.42 | ||||
| 37 | WPW10314204 | Housing, Damper (Replaces: W10314204) |
|
$ 102.06 | |||||
| 38 | W11508229 | Multiflow Assy (Replaces: W10426834) |
|
$ 70.20 | |||||
| 39 | WPW10356895 | Multiflow Cover (Replaces: W10356895) |
|
$ 161.49 |
