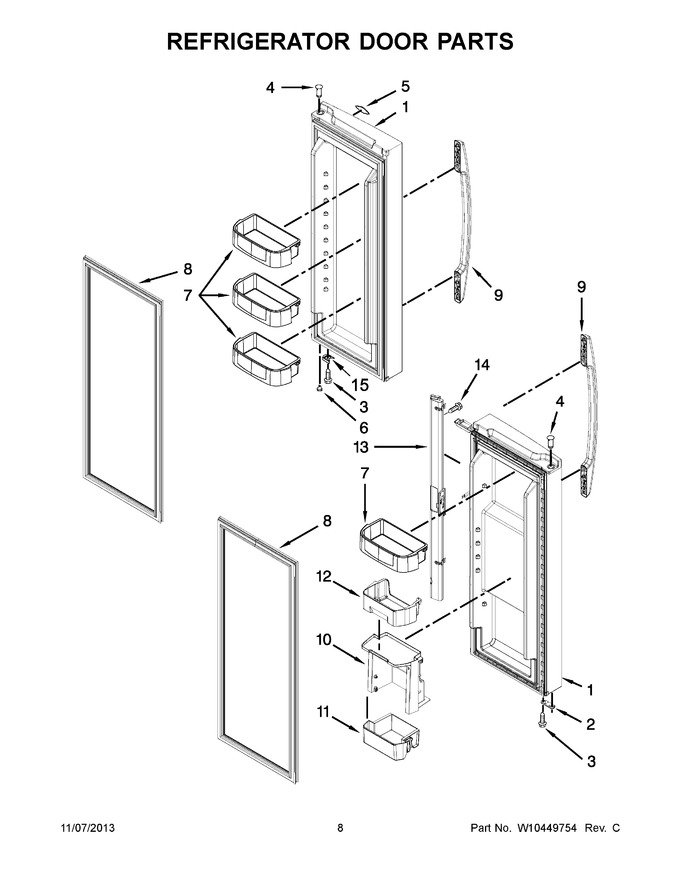

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10393587 | Door, Refrigerator (includes Item No.8) (left Hand (white)) (Replaces: W10393587) |
|
$ 542.72 | |||||
| 1 | LW10353181 | Door, Refrigerator (includes Item No.8) (right Hand (white)) (Replaces: W10353181) |
|
$ 741.21 | |||||
| 1 | LW10413522 | Door, Refrigerator (includes Item No.8) (left Hand (black)) (Replaces: W10413522) |
|
$ 430.46 | |||||
| 1 | LW10413518 | Door, Refrigerator (includes Item No.8) (right Hand (black)) (Replaces: W10413518) |
|
$ 573.44 | |||||
| 1 | LW10413524 | Door, Refrigerator (includes Item No.8) (left Hand (stainless)) (Replaces: W10413524) |
|
$ 741.25 | |||||
| 1 | LW10413519 | Door, Refrigerator Includes Item No.8) (right Hand (stainless)) (Replaces: W10413519) |
|
$ 744.79 | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 3 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 4 | W11544568 | Thimble (right Hand) (Replaces: W10366270) |
|
Immediately | $ 12.56 | ||||
| 4 | W11189115 | Thimble (left Hand) (Replaces: W10334042) |
|
Immediately | $ 11.44 | ||||
| 5 | WPW10170766 | Badge, Maytag (Replaces: W10170766) |
|
Immediately | $ 63.45 | ||||
| 6 | WPW10470155 | Closure, Door (Replaces: W10470155) |
|
Immediately | $ 6.80 | ||||
| 7 | WPW10308869 | Bin, Medium (Replaces: W10331764) |
|
Immediately | $ 69.93 | ||||
| 8 | W10460610 | Gasket, Refrigerator (black) (Replaces: W10413465) |
|
$ 251.58 | |||||
| 8 | W10460612 | Gasket, Refrigerator (beige) (Replaces: W10353189) |
|
Immediately | $ 281.09 | ||||
| 8 | WPW10460580 | Gasket, Refrigerator (grey) (Replaces: W10413468) |
|
Immediately | $ 241.88 | ||||
| 9 | W10252288A | Assembly, Handle (stainless) (Replaces: W10252288) |
|
$ 116.87 | |||||
| 9 | W10252285 | Assembly, Handle (black) |
|
- | |||||
| 9 | WPW10252284A | Assembly, Handle (white) (Replaces: W10252284) |
|
$ 68.65 | |||||
| 10 | WPW10317224 | Compartment, Utility (Replaces: W10317224) |
|
$ 93.42 | |||||
| 11 | WPW10372916 | Bin, Shallow (Replaces: W10372916) |
|
$ 198.86 | |||||
| 12 | W10462298 | Bin, Low Profile |
|
$ 119.08 | |||||
| 13 | WPW10624450 | Mullion, Door (grey) (Replaces: W10448924) |
|
Immediately | $ 214.00 | ||||
| 13 | W11692845 | Mullion, Door (black) (Replaces: W10448923) |
|
$ 217.49 | |||||
| 13 | WPW10624451 | Mullion, Door (white) (Replaces: W10448918) |
|
Immediately | $ 119.34 | ||||
| 14 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.11 | |||||
| 15 | WPW10397055 | Bracket, Door Stop (Replaces: W10397055) |
|
Immediately | $ 33.25 |
