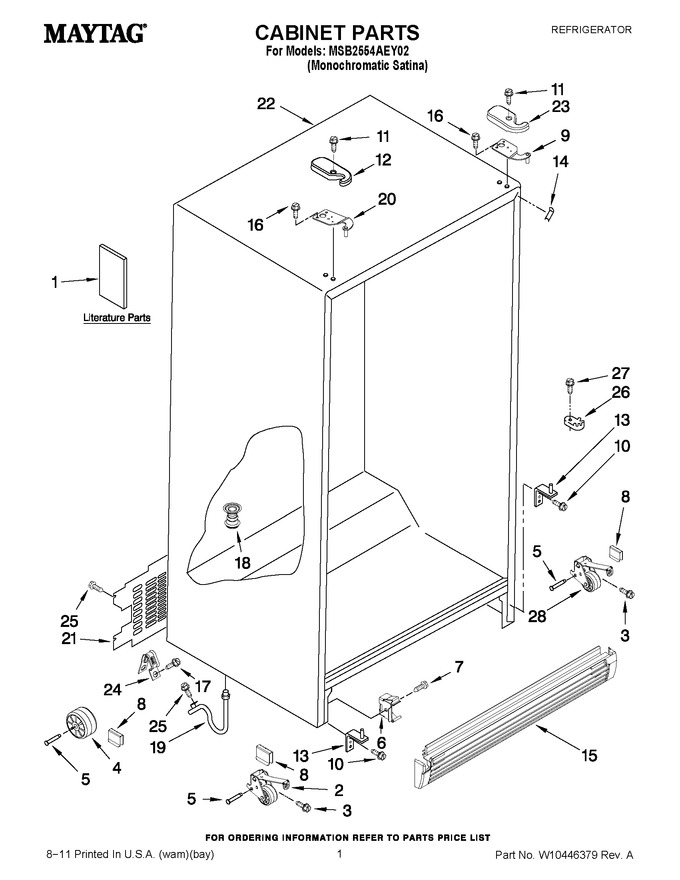

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10266784 | Owner?s Manual |
|
- | |||||
| 1 | W10179960 | Energy Guide |
|
- | |||||
| 1 | W10142192 | Service And Wiring Sheet |
|
- | |||||
| 2 | WPW10304660 | Front Roller, Left (Replaces: W10304660) |
|
Immediately | $ 73.90 | ||||
| 3 | W11544561 | Screw (Replaces: 2152958) |
|
$ 14.75 | |||||
| 4 | WPW10475495 | Rear, Roller (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 5 | W11594405 | Axle, Roller (Replaces: 2262072) |
|
Immediately | $ 19.12 | ||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 8.11 | ||||
| 7 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 8 | WP2174706 | Clip, Axle (Replaces: 2174706) |
|
$ 11.53 | |||||
| 9 | W10287684 | Hinge, Top Rc |
|
$ 46.69 | |||||
| 10 | WP489497 | Screw (Replaces: 3400113) |
|
Immediately | $ 29.09 | ||||
| 11 | WP8281227 | Screw (Replaces: 8281227) |
|
$ 10.96 | |||||
| 12 | W10138584 | Hinge Cover Fc |
|
$ 15.17 | |||||
| 13 | W10251408 | Bottom Hinge |
|
$ 59.74 | |||||
| 14 | W10851579 | Filler, Wrapper (Replaces: W10283961) |
|
Immediately | $ 7.55 | ||||
| 15 | WPW10311033 | Grille (Replaces: W10283949) |
|
$ 184.91 | |||||
| 16 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 17 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 18 | W11566763 | Drain Fitting (Replaces: 2304888) |
|
Immediately | $ 53.45 | ||||
| 19 | W11512417 | Extension Tube (Replaces: W10153550) |
|
$ 36.53 | |||||
| 20 | W10287685 | Hinge Top Fc |
|
$ 63.39 | |||||
| 21 | 2214575 | Cover, Unit (Replaces: 2214574) |
|
- | |||||
| 22 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 23 | W10138579 | Hinge Cover (rc) |
|
$ 35.68 | |||||
| 24 | 489348 | Clamp, Service Cord |
|
- | |||||
| 25 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 8.05 | |||||
| 26 | WPW10329686 | Door Closer, Lower Cam (Replaces: 2155311) |
|
Immediately | $ 5.90 | ||||
| 27 | WP489483 | Screw (Replaces: 489483) |
|
$ 11.41 | |||||
| 28 | WPW10304659 | Front Roller, Right (Replaces: W10304659) |
|
Immediately | $ 68.52 |
