Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2317246 Ice Bin Special Order $ 67.98

2 WP8281163 Screw   (Replaces: 8281163) In-Stock Immediately $ 10.70

3 WP2188919 Holder   (Replaces: 2188919) Special Order $ 7.55

4 WP2198628 Seal   (Replaces: 2198628) In-Stock Immediately $ 12.57

5 WP2188917 Drive Shaft   (Replaces: 2188916) Special Order $ 105.19

6 2256154 Enclosure, Motor Special Order $ 49.78

7 2315546 Dispenser, Motor Appelez-nous -
8 2212305 Cover Appelez-nous -
9 WP489478 Screw   (Replaces: 489478) Special Order $ 8.18

10 WP2315559 Sleeve, Coupling   (Replaces: 2315559) Special Order $ 85.41

11 W10204457 Ice Container (complete) Special Order $ 171.29


    View Diagram in Separate Window     Print Icon   Print Part List

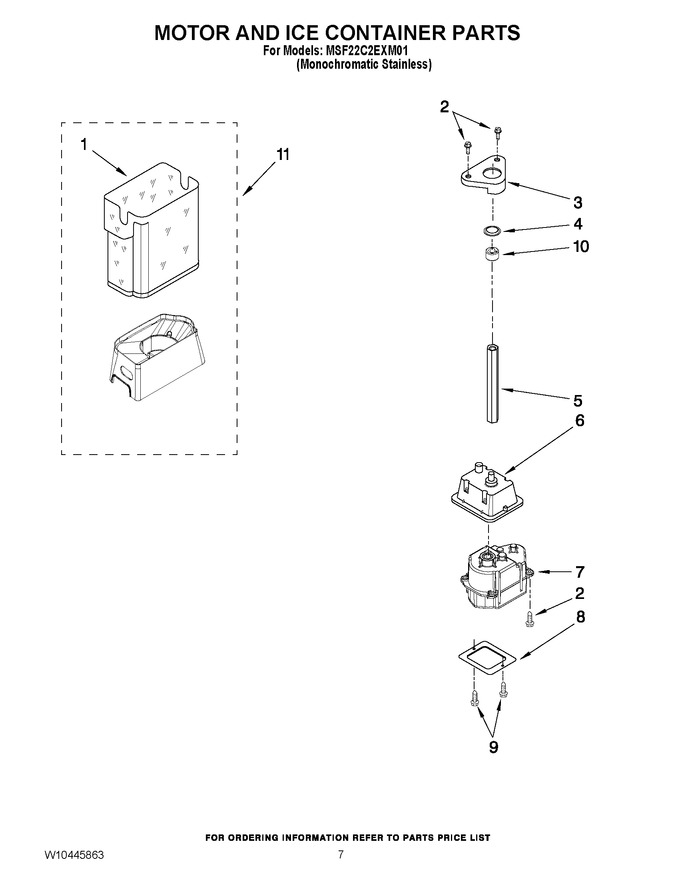

Diagram for MSF22C2EXM01
