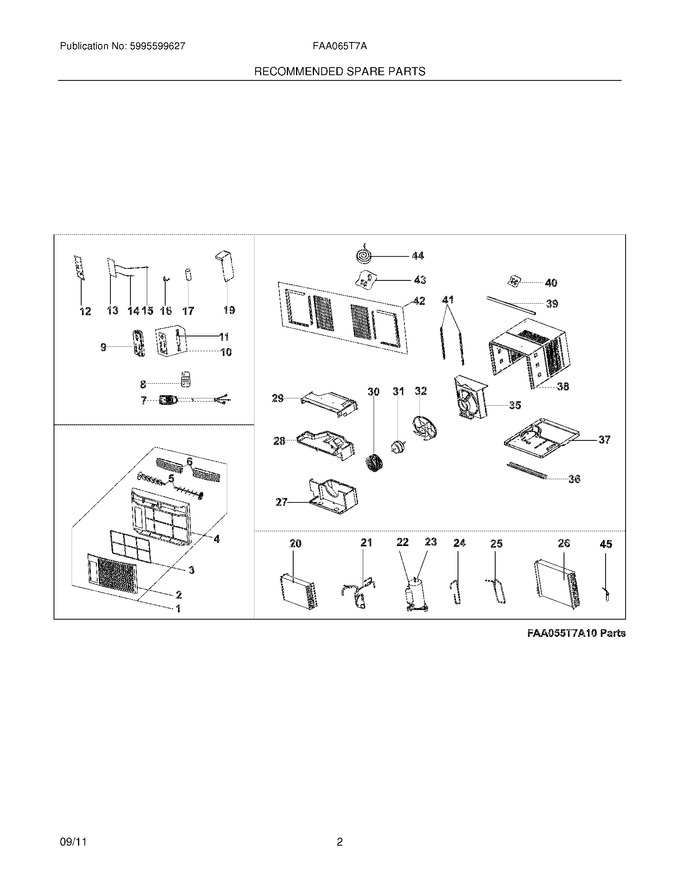

03 - Recommended Spare Parts
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304477122 | Panel,front Grille ,tilt-out |
|
- | |||||
| 4 | 5304477123 | Frame,front Assembly |
|
- | |||||
| 12 | 5304477053 | Cover,electrical Box |
|
- | |||||
| 16 | 5304471203 | Strap,capacitor Clamp |
|
- | |||||
| 19 | 5304476551 | Control Box |
|
- | |||||
| 27 | 5304476557 | Scroll,blower Housing ,bottom |
|
- | |||||
| 28 | 5304476558 | Scroll,blower Housing ,middle |
|
- | |||||
| 29 | 5304476559 | Scroll,blower Housing ,top |
|
- | |||||
| 35 | 5304483090 | Shroud,condenser/fan |
|
- | |||||
| 36 | 5304483179 | Rail,bottom |
|
- | |||||
| 37 | 5304483180 | Base,unit Chassis |
|
- | |||||
| 38 | 5304477129 | Cabinet,wrapper/sleeve |
|
- | |||||
| 39 | 5304477130 | Rail,shutter Track ,top |
|
- | |||||
| 40 | 5304472191 | Screw Kit,top Rail Mount |
|
$ 16.22 | |||||
| 41 | 5304472236 | Retainer,shutter ,cabinet Sides |
|
- | |||||
| 42 | 5304472235 | Window Filler Kit,slider Panels |
|
- | |||||
| 43 | 5304472192 | Hardware,mounting ,screws/locks |
|
$ 8.49 | |||||
| 44 | 5304472211 | Seal Kit,foam ,sash Filler |
|
$ 36.12 | |||||
| F1 | 5304472233 | Front Assembly,complete Panel |
|
- | |||||
| F10 | 5304476888 | Pc Board,display/input |
|
- | |||||
| F11 | 5304482531 | Wire,connector ,pc Boards |
|
- | |||||
| F13 | 5304476889 | Pc Board,main ,control/power |
|
- | |||||
| F14 | 5304521225 | Sensor,evap Temp ,thermistor (Replaces: 5304471275) |
|
- | |||||
| F15 | 5304476053 | Sensor,ambient Temp ,thermistor |
|
$ 28.93 | |||||
| F17 | 5304476074 | Capacitor,compressor |
|
- | |||||
| F20 | 5304483095 | Evaporator,with Cap Tube |
|
- | |||||
| F21 | 5304483096 | Tube,capillary |
|
- | |||||
| F22 | 5304476073 | Compressor,with Overload |
|
- | |||||
| F23 | 5304476301 | Overload Protector,compressor |
|
- | |||||
| F24 | 5304476565 | Tube,suction |
|
- | |||||
| F25 | 5304483178 | Tube,discharge |
|
- | |||||
| F26 | 5304483098 | Condenser |
|
- | |||||
| F3 | 5304472234 | Filter,air |
|
$ 8.51 | |||||
| F30 | 5304476051 | Blower Wheel,centrifugal |
|
- | |||||
| F31 | 5304476050 | Motor,fan |
|
$ 210.13 | |||||
| F32 | 5304504732 | Fan Blade,axial Flow (Replaces: 5304483089) |
|
- | |||||
| F45 | 5304476367 | Drier-filter |
|
$ 45.55 | |||||
| F5 | 5304477124 | Louver,vertical |
|
- | |||||
| F6 | 5304477125 | Louver,horizontal |
|
- | |||||
| F7 | 5304476903 | Power Cord,electric ,lcdi |
|
$ 56.70 | |||||
| F8 | 5304471273 | Remote Control,transmitter |
|
- | |||||
| F9 | 5304477126 | Control Panel,with Overlay |
|
- |
