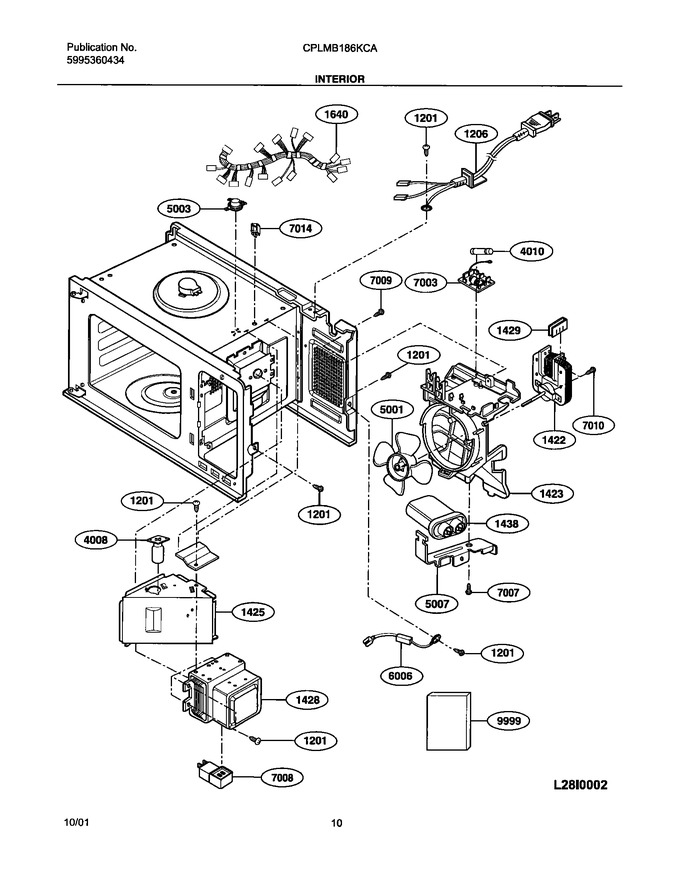

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
F120	5304423476		Screw,binding Head		Appelez-nous	-
F120	5304424875		Power Cord,electric ,black		Appelez-nous	-
F142	5304423480		Motor, Cooling Fan		Appelez-nous	-
F142	5304423481		Housing, Fan, Suction Guide		Appelez-nous	-
F142	5304423482		Duct, Air		Appelez-nous	-
F142	5304423483		Magnetron		Appelez-nous	-
F142	5304423484		Insulator, Fan Motor		Appelez-nous	-
F143	5304423485		Capacitor, High Voltage				$ 407.40
F164	5304424876		Wiring Harness,lead Wire Assy		Appelez-nous	-
F400	5304423488		Lamp,incandescent				$ 114.56
F401	5304423490		Fuse,cartridge		Appelez-nous	-
F500	5304423491		Fan Blade		Appelez-nous	-
F500	5304423492		Thermostat,thermal Cutout ,bimetal ,mw Oven Cavity				$ 157.66
F500	5304424877		Bracket,capacitor Mtg		Appelez-nous	-
F600	5304423494		Diode,high Voltage		Appelez-nous	-
F700	5304424878		Filter,noise ,electronic		Appelez-nous	-
F700	5304424870		Screw,tapping ,truss Head		Appelez-nous	-
F700	5304424879		Filter,choke ,magnetron		Appelez-nous	-
F700	5304424874		Screw		Appelez-nous	-
F701	5304424880		Screw,tapping ,truss Head		Appelez-nous	-
F701	5304424882		Clip,wire Holder		Appelez-nous	-
NI	5304423503		Use & Care Guide,english		Appelez-nous	-
NI	318203500		Use & Care Guide,french		Appelez-nous	-
NI	5304423400		Instructions,installation		Appelez-nous	-
NI	5304423502		Technical Guide, Mini Manual, Wiring Diagram		Appelez-nous	-
