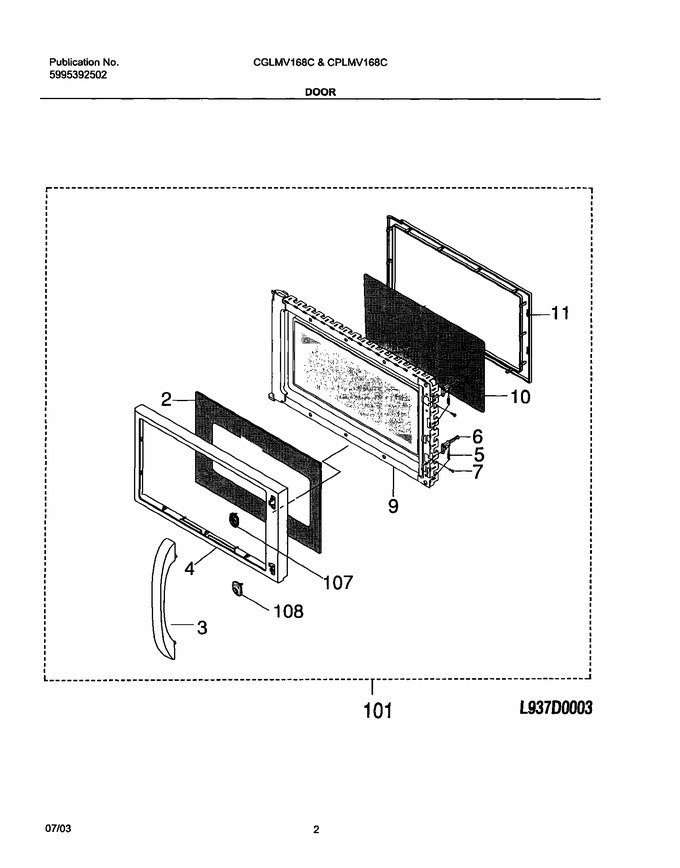

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304434314		Screen,door ,glass ,clear		Appelez-nous	-
3	5304423438		Handle,door ,stainless Steel		Appelez-nous	-
4	5304429402		Frame,outer Door ,black				$ 379.21
5	5304429405		Spring,door Latch		Appelez-nous	-
6	5304429406		Pawl,door Latch				$ 74.18
7	5304429407		Pin,hinge		Appelez-nous	-
9	5304429408		Panel,inner Door Assy ,black		Appelez-nous	-
10	5304409136		Seal,door ,film				$ 228.85
11	5304429411		Frame,choke Cover ,black ,inner Door		Appelez-nous	-
101	5304434307		Door,stnls Stl/black ,complete Assy		Appelez-nous	-
107	5304423460		End Cap,handle Mt ``u``		Appelez-nous	-
108	5304423461		End Cap,handle Mt ``l``		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
