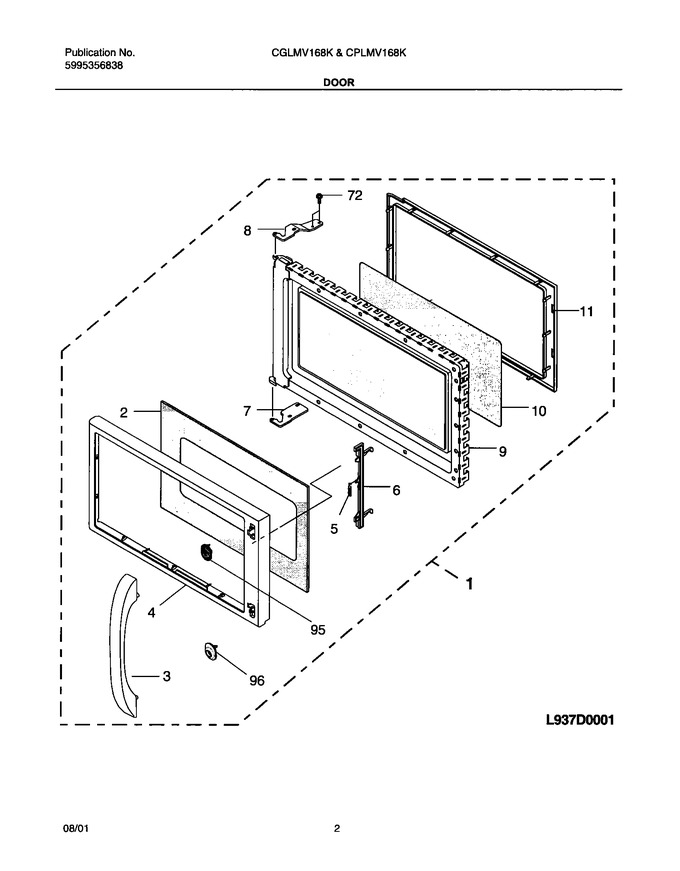

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304424541		Door,stainless Steel ,complete Assy		Appelez-nous	-
2	5304423436		Screen,door ,glass ,clear		Appelez-nous	-
3	5304423438		Handle,door ,stainless Steel		Appelez-nous	-
4	5304408536		Frame,outer Door ,black				$ 475.60
5	5304423440		Spring,door Latch		Appelez-nous	-
6	5304409137		Latch-door		Appelez-nous	-
7	5304408579		Hinge,door ,lower		Appelez-nous	-
8	5304408578		Hinge,door ,upper		Appelez-nous	-
9	5304423441		Panel,door ,black ,inner		Appelez-nous	-
10	5304409136		Seal,door ,film				$ 228.85
11	5304408575		Frame,choke Cover ,black ,inner Door		Appelez-nous	-
72	5304408958		Bolt,flange		Appelez-nous	-
95	5304423460		End Cap,handle Mt ``u``		Appelez-nous	-
95	5304423461		End Cap,handle Mt ``l``		Appelez-nous	-
