SELECT A DIAGRAM

1 - Doors


2 - Cabinet


3 - Unit Parts

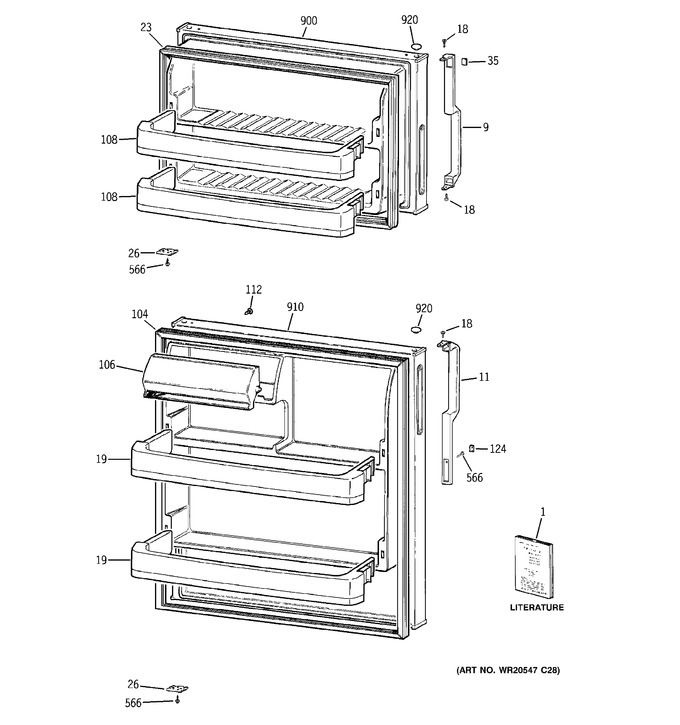

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-51818		Pm Mini Manual Wiring		Appelez-nous	-
1	49-60656		Pm Guide Owners		Appelez-nous	-
9	WG03L00751		Handle Door Asm Fz Wh   (Replaces: WR12X10108)				$ 66.80
9	WR12X10453		Handle Door Asm Fz Bq		Appelez-nous	-
11	WR12X10454		Handle Door Ff Bq		Appelez-nous	-
11	WG03L00750		Handle Door Ff Wh   (Replaces: WR12X10107)				$ 58.86
18	WG03A00419		Scr 12-24 Gx Hxw .750   (Replaces: WR01X10950)				$ 29.41
19	WR17X12916		Shelf Fixed		Appelez-nous	-
23	WG03L00640		Gasket Door Fz   (Replaces: WR24X10228)			Immediately	$ 146.91
26	WR02X13134		Stop Door		Appelez-nous	-
35	WR02X10708		Lens Nameplate Bq		Appelez-nous	-
35	WG03F01617		Lens Nameplate Wh   (Replaces: WR04X10028)				$ 4.37
104	WG03F00914		Gasket Door Ff   (Replaces: WR24X10231)			Immediately	$ 155.77
106	WG03L00757		Door Dairy   (Replaces: WR22X487)				$ 109.16
108	WG03F01622		Shelf Fixed Fz   (Replaces: WR17X11890)			Immediately	$ 50.92
112	WR01A00517		Plug Door Rvsbl Wh   (Replaces: WR2X8693)				$ 4.37
112	WR02X10459		Plug Door Rvsbl Bq		Appelez-nous	-
124	WR12X721		Plug Button Insert Wh		Appelez-nous	-
124	WR12X10452		Plug Button Insert Bq		Appelez-nous	-
566	WR01X10590		Scr 10-16 Ab Pnt20 1/2 S		Appelez-nous	-
900	WR78X12401		Door Asm Foam Fz		Appelez-nous	-
900	WR78X12402		Door Asm Foam Fz		Appelez-nous	-
910	WG03L01183		Door Asm Foam Ff   (Replaces: WR78X12394)				$ 18.49
910	WR78X12395		Door Asm Foam Ff		Appelez-nous	-
920	WR2X8233		Plug Button Thimble Wh		Appelez-nous	-
920	WR02X10850		Plug Button Thimble Bq		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
