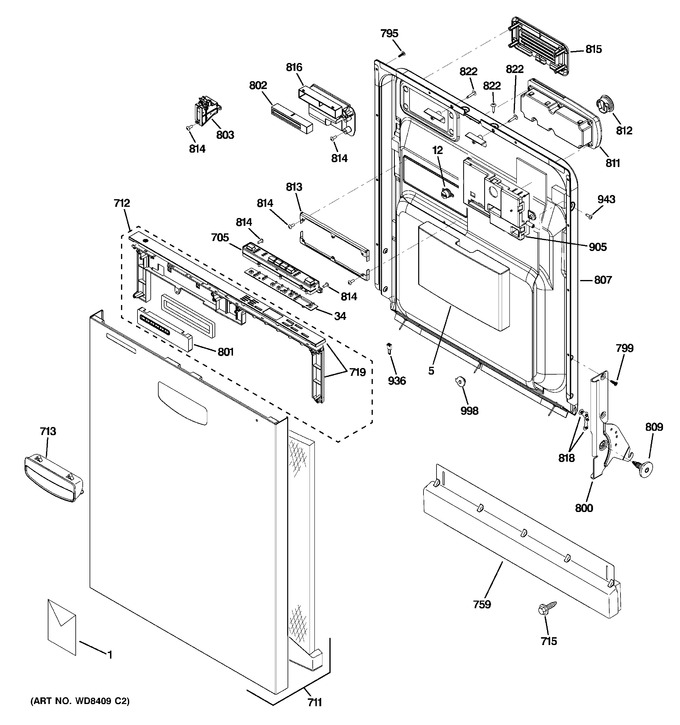

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper Rack Assembly


4 - Lower Rack Assembly


5 - Motor-pump Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-30284		Pm Install Instructions		Appelez-nous	-
1	31-30635		Pm Mini Manual		Appelez-nous	-
1	49-55077		Pm Manual Use & Care		Appelez-nous	-
5	WD12X10361		Shield Board Top		Appelez-nous	-
12	WD01X10515		Tco Assembly		Appelez-nous	-
34	WD21X10471		Control Tactile Asm Kit		Appelez-nous	-
705	WD01X10516		Button Asm Silicon Ww		Appelez-nous	-
705	WD01X10527		Button Asm Silicon Ge		Appelez-nous	-
711	WD27X10276		Panel Front Finished		Appelez-nous	-
711	WD34X11760		Panel Asm Outer Kit - Ww		Appelez-nous	-
712	WD27X10318		Console Asm Kit Bb		Appelez-nous	-
712	WD27X10319		Console Asm Tactile		Appelez-nous	-
713	WD09X10075		Handle Asm Pocket		Appelez-nous	-
713	WD09X10076		Handle Asm Pocket		Appelez-nous	-
715	WD02X10086		Scr 8-18 B 1hw 1/2 S N		Appelez-nous	-
715	WD02X10085		Scr 8-18 B 1hw 1/2 S N		Appelez-nous	-
719	WD27X10283		Console Asm Lightpipe		Appelez-nous	-
719	WD27X10277		Console Asm Lightpipe		Appelez-nous	-
759	WD27X10168		Toekick Asm		Appelez-nous	-
759	WG04F01715		Toekick Asm   (Replaces: WD27X10177)				$ 429.91
795	WG04A00158		Scr 8-18 Ab Tr 7/8s   (Replaces: WD02X10106)				$ 3.57
799	WD02X10149		Scr 10-32 Gxtt Flp.595 S		Appelez-nous	-
800	WG04L01512		Arm Hinge Lh Asm   (Replaces: WD14X10046)				$ 217.35
800	WD14X10047		Arm Hinge Rh Asm		Appelez-nous	-
801	WD01X10526		Louver Asm Vent		Appelez-nous	-
801	WD01X10518		Louver Asm Vent		Appelez-nous	-
802	WD01X10559		Foam Vent		Appelez-nous	-
802	WD01X10546		Foam Vent		Appelez-nous	-
803	WG04F06796		Latch Asm   (Replaces: WD13X10058)				$ 65.12
807	WD31X10126		Door Inner & Gasket		Appelez-nous	-
809	WG04A01243		Scr 10-32gx Flt25 .615 S   (Replaces: WD02X10084)				$ 3.57
811	WG04F00692		Module Rinse And Cap Asm   (Replaces: WD12X10163)			Immediately	$ 154.01
812	WG04L00093		Cap Rinse Asm   (Replaces: WD12X10122)				$ 35.73
813	WG04A00035		Bracket Detergent Disp   (Replaces: WD01X10207)				$ 5.72
814	WD02X10104		Scr 8-10 Pl Trp 1/2 S		Appelez-nous	-
815	WG04L01582		Cover Vent   (Replaces: WD12X10127)				$ 27.16
816	WD01X10543		Vent Asm		Appelez-nous	-
818	WG04L01539		Bearing Hinge Arm   (Replaces: WD12X10313)				$ 10.54
822	WG04A00378		Screw   (Replaces: WD2X444)				$ 3.57
905	WG04A01076		Board Main Dl-2   (Replaces: WD21X10470)				$ 241.37
936	WD21X10464		Model Selector Plug Asm		Appelez-nous	-
943	WZ05X0219		Screw		Appelez-nous	-
998	WD01X10560		Lens Asm Kit Ww		Appelez-nous	-
998	WD01X10561		Lens Asm Kit Bb		Appelez-nous	-
