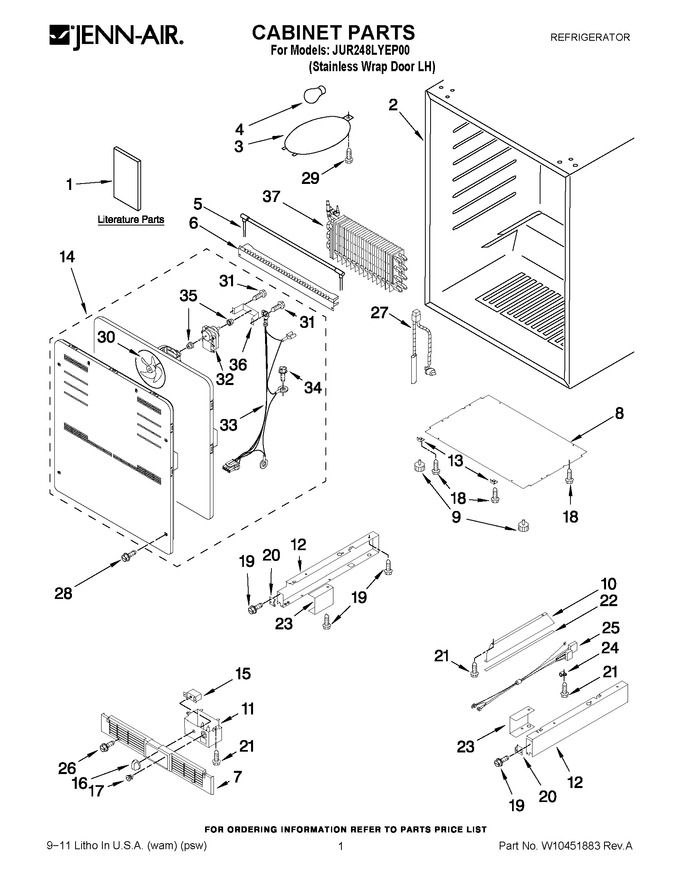

01 - Cabinet Parts
02 - Shelf Parts
03 - Door Parts
04 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2300278 | Use & Care Guide |
|
- | |||||
| 1 | 4344902 | Wiring Diagram |
|
- | |||||
| 1 | W10323058 | Energy Label |
|
- | |||||
| 2 | N/P | Cabinet (not A Service Part) |
|
- | |||||
| 3 | W10167586 | Lens, Light |
|
- | |||||
| 4 | WP22002263 | Bulb, Light (Replaces: 4344740) |
|
Immediately | $ 14.85 | ||||
| 5 | W11230119 | Heater, Defrost (Replaces: 4344746) |
|
$ 145.69 | |||||
| 6 | 4344747 | Heat Shield |
|
$ 78.49 | |||||
| 7 | W10238193 | Grille |
|
$ 42.11 | |||||
| 8 | 4344762 | Plate, Bottom |
|
- | |||||
| 9 | W11106296 | Foot, Leveling (Replaces: 4344763) |
|
$ 19.03 | |||||
| 10 | W10204638 | Brace, Support |
|
- | |||||
| 11 | 4344765 | Control Box |
|
- | |||||
| 12 | 4344789 | Frame, Side (left Side) |
|
$ 345.59 | |||||
| 12 | 4344790 | Frame, Side (right Side) |
|
$ 137.58 | |||||
| 13 | W10239388 | Bracket, Grille |
|
- | |||||
| 14 | W10299464 | Evaporator Fan Assembly |
|
- | |||||
| 15 | W11176247 | Thermostat (Replaces: 4344766) |
|
$ 235.27 | |||||
| 16 | WP3402573 | Knob, Thermostat (Replaces: 4344768) |
|
$ 106.51 | |||||
| 17 | WP4344767 | Switch, Plunger (Replaces: 4344767) |
|
$ 59.62 | |||||
| 18 | 4344826 | Screw |
|
$ 16.70 | |||||
| 19 | W10243104 | Screw |
|
- | |||||
| 20 | 4344819 | Clip, Grille |
|
- | |||||
| 21 | 4344825 | Screw |
|
- | |||||
| 22 | 4344823 | Seal |
|
$ 101.83 | |||||
| 23 | 4344821 | Frame, Support (right) |
|
- | |||||
| 23 | 4344820 | Frame, Support (left) |
|
- | |||||
| 24 | W11456069 | Clip, Harness (Replaces: 4344824) |
|
Immediately | $ 22.40 | ||||
| 25 | 4344822 | Harness, Wire |
|
- | |||||
| 26 | 4344826 | Screw |
|
$ 16.70 | |||||
| 27 | W10860146 | Bi-metal Assy. (Replaces: W10299078) |
|
$ 251.55 | |||||
| 28 | 4344793 | Screw |
|
- | |||||
| 29 | 4344791 | Screw |
|
- | |||||
| 30 | WPW10299081 | Fan Blade (Replaces: W10299081) |
|
$ 108.71 | |||||
| 31 | 4344878 | Screw |
|
- | |||||
| 32 | W10299082 | Evaporator Fan Motor |
|
$ 86.00 | |||||
| 33 | 4344877 | Harness, Wire |
|
- | |||||
| 34 | 4344832 | Screw, Ground |
|
- | |||||
| 35 | 4344778 | Grommet, Fan Motor |
|
- | |||||
| 36 | 4344899 | Bracket, Motor |
|
- | |||||
| 37 | N/P | Evaporator (not Serviced) |
|
- |
