SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Liner Parts


04 - Freezer Door Parts


05 - Refrigerator Door Parts

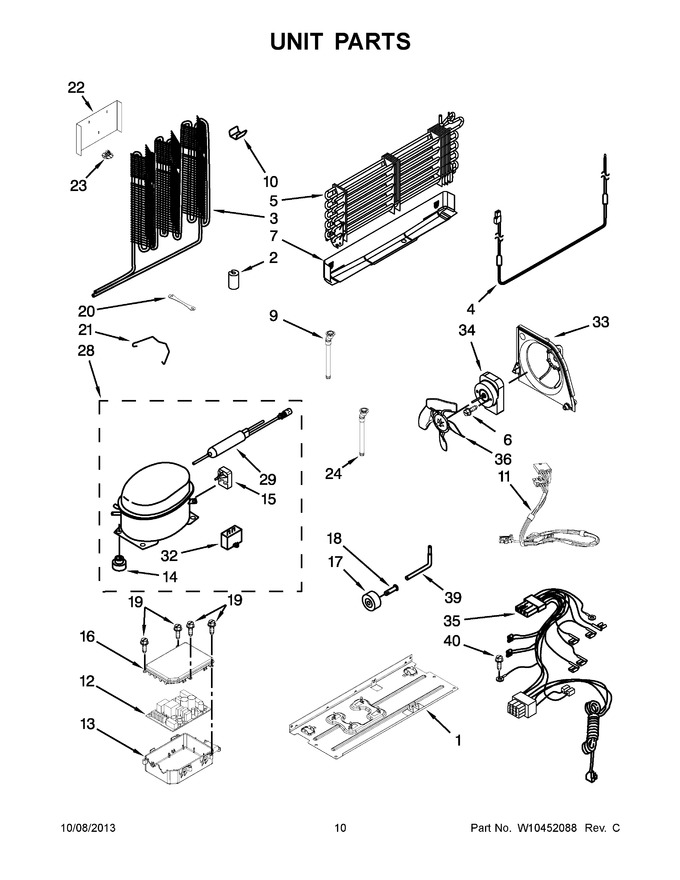

06 - Unit Parts


07 - Shelf Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10300116		Plate, Unit Mounting				$ 156.48
2	W10852725		Grommet, Condenser   (Replaces: 2319835)				$ 7.70
3	WPW10342567		Condenser   (Replaces: W10342567)				$ 264.95
4	WPW10436849		Heater, Defrost   (Replaces: W10436849)			Immediately	$ 134.14
5	WPW10321158		Evaporator Assembly   (Replaces: W10321158)			Immediately	$ 293.66
6	W11501418		Screw   (Replaces: 8533961)		Appelez-nous	-
7	W10890667		Tray, Evaporator   (Replaces: W10314200)				$ 144.71
9	W11190084		Drain Tube   (Replaces: W10314199)			Immediately	$ 62.44
10	W10683556		Clip, Condenser   (Replaces: 2311725)				$ 18.46
11	WPW10424230		Wire Assembly, Low Voltage   (Replaces: W10424230)			Immediately	$ 117.74
12	W11034366		Electronic Control Minotaur   (Replaces: W10336511)			Immediately	$ 374.89
13	2323186		Enclosure, Electronic Control   (Replaces: W10370696)				$ 102.36
14	WPW10169124		Grommet   (Replaces: 10835903)			Immediately	$ 7.19
15	WPW10194431		Start Device, Combination (start Relay And Overload)   (Replaces: W10194431)			Immediately	$ 86.85
16	W10313215		Cover, Electronic Control				$ 74.28
17	WPW10475495		Roller   (Replaces: 2150304)			Immediately	$ 32.06
18	W11594405		Axle, Rivet   (Replaces: 2179826)			Immediately	$ 18.21
19	WPW10171469		Screw   (Replaces: 8533859)			Immediately	$ 11.06
20	W10236396		Strap, Compressor			Immediately	$ 19.82
21	W10204187		Strap, Bale		Appelez-nous	-
22	W10349514		Cover, Condenser Bottom				$ 78.48
23	W10296661		Clip, Bottom Cover				$ 16.93
24	W11190084		Valve, Drain   (Replaces: W10316650)			Immediately	$ 62.44
28	WPW10466675		Compressor (also Order 876765 Tube Kit)   (Replaces: W10391109)				$ 794.79
29	WPW10143759		Drier   (Replaces: W10177049)			Immediately	$ 30.78
32	WPW10662129		Capacitor   (Replaces: 2264017)			Immediately	$ 58.86
33	WP2315541		Baffle, Air   (Replaces: 2315541)			Immediately	$ 83.80
34	WP2188874		Motor, Condenser   (Replaces: 2188874)			Immediately	$ 113.96
35	W10390445		Wire Assembly, Unit				$ 198.15
36	WPW10139483		Blade, Fan   (Replaces: W10139483)				$ 95.07
39	2154109		Tube, Process				$ 72.63
40	WP489128		Screw   (Replaces: 488500)				$ 10.88
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access		Appelez-nous	-
NI	978029		Valve, Access				$ 93.85
NI	978026		Valve, Access			Immediately	$ 128.09
NI	876764		Valve, Access			Immediately	$ 91.35
NI	N/P		Refrigerant Charge 5.5 Oz. (r-134a)		Appelez-nous	-
NI	WP978025		Valve, Access   (Replaces: 978025)			Immediately	$ 105.25
NI	978030		Valve, Access				$ 130.71

    View Diagram in Separate Window       Print Part List
