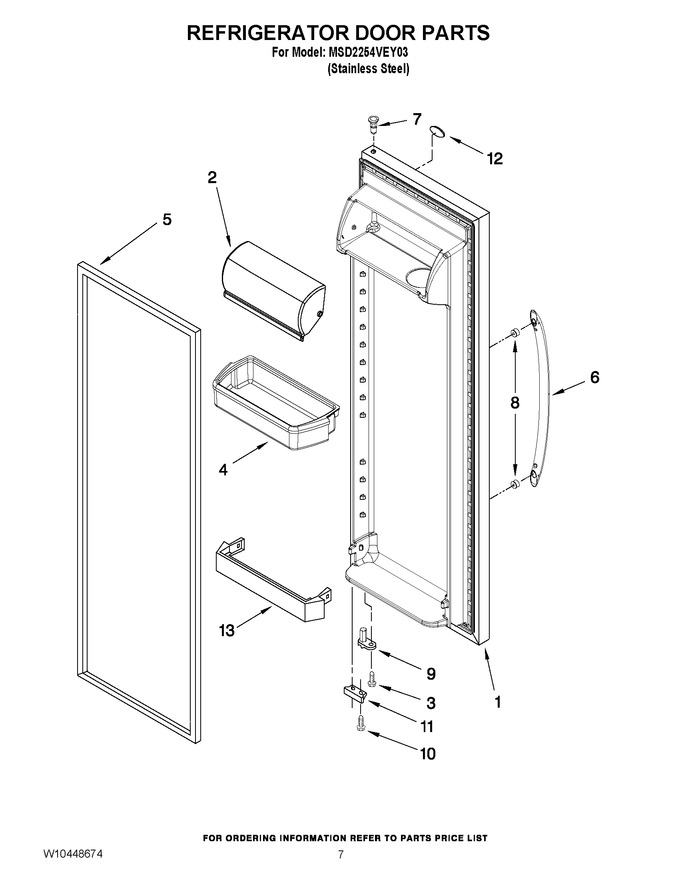

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10365648 | Refrigerator Door (includes Item 5) (stainless) (Replaces: W10365648) |
|
- | |||||
| 2 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 89.42 | ||||
| 3 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 4 | WPW10321304 | Door Bin (3) (Replaces: W10321304) |
|
Immediately | $ 44.73 | ||||
| 5 | W10136732 | Door Gasket, Magnetic (Replaces: 2327161) |
|
Immediately | $ 361.20 | ||||
| 6 | W11690159 | Handle (includes No.3) (Replaces: 67006391) |
|
$ 173.76 | |||||
| 7 | WP2182181 | Thimble-top (Replaces: 2308091) |
|
$ 8.15 | |||||
| 8 | WPW10170540 | Stud, Handle (Replaces: W10170540) |
|
Immediately | $ 8.51 | ||||
| 9 | WP2182179 | Door Closer Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 10 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 11 | W10185570 | Bracket, Door Stop |
|
$ 11.59 | |||||
| 12 | 2324038 | Nameplate |
|
$ 71.59 | |||||
| 13 | WP2156022 | Trivet (Replaces: 2156022) |
|
Immediately | $ 72.80 |
