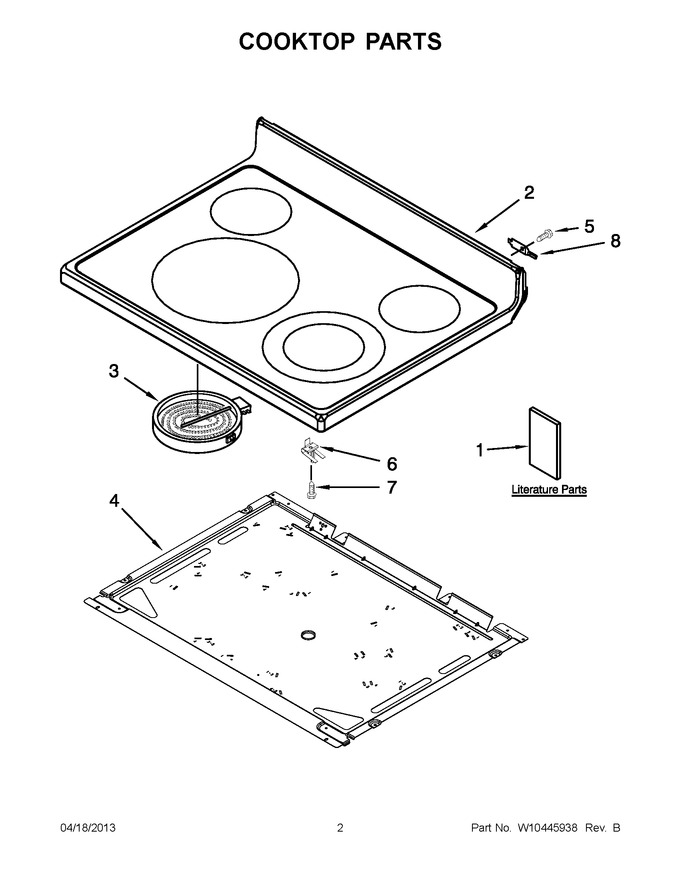

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer And Rack Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10434978 | Tech Sheet |
|
- | |||||
| 1 | 9757143 | Template, Anti-tip (english/french) |
|
- | |||||
| 1 | 9757142 | Template, Anti-tip (english/spanish) |
|
- | |||||
| 1 | W10252706 | Instructions, Installation |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10234644 | Owner?s Manual |
|
- | |||||
| 2 | W10270210 | Cooktop (biscuit) (Replaces: W10211391) |
|
- | |||||
| 2 | W10211390 | Cooktop (stainless) |
|
- | |||||
| 2 | W10211389 | Cooktop (white) |
|
- | |||||
| 3 | WPW10275049 | Element, Surface (2500/1200w) (right Front) (Replaces: W10275049) |
|
Immediately | $ 314.23 | ||||
| 3 | W11171119 | Element, Surface (1200w) (right Rear & Left Rear) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 3 | W10823728 | Element, Surface 1400w/3000w (left Front) (Replaces: W10169796) |
|
Immediately | $ 314.55 | ||||
| 4 | W10170526 | Pan, Radiant Element |
|
$ 257.69 | |||||
| 5 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 6 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 7 | WP3196170 | Screw (Replaces: 3196170) |
|
$ 7.19 | |||||
| 8 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 12.55 |
