01 - Cooktop Parts

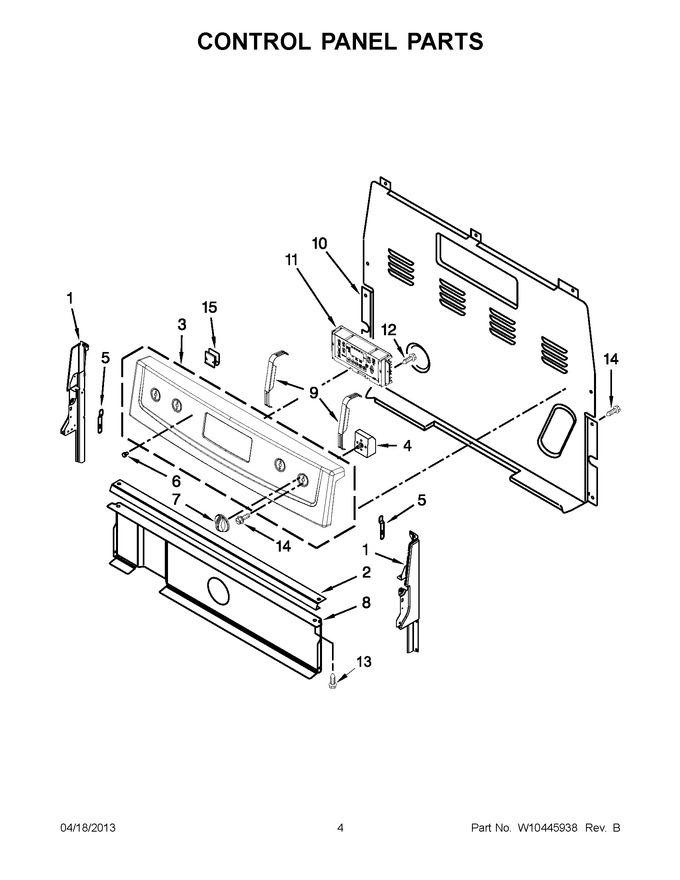

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer And Rack Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11230611 | Endcap (biscuit Left Hand) (Replaces: W10184435) |
|
- | |||||
| 1 | W11219365 | Endcap (white Left Hand) (Replaces: W10184433) |
|
$ 40.43 | |||||
| 1 | W11219664 | Endcap (black Left Hand) (Replaces: W10184437) |
|
$ 146.50 | |||||
| 1 | W11230612 | Endcap (biscuit Right Hand) (Replaces: W10184436) |
|
- | |||||
| 1 | W11219665 | Endcap (black Right Hand) (Replaces: W10184438) |
|
$ 40.44 | |||||
| 1 | W11219370 | Endcap (white Right Hand) (Replaces: W10184434) |
|
$ 57.93 | |||||
| 2 | W10525121 | Bracket, Console Mounting |
|
$ 94.14 | |||||
| 3 | W10292009 | Panel, Control (white) |
|
$ 133.52 | |||||
| 3 | W10292010 | Panel, Control (black) |
|
- | |||||
| 3 | W10292011 | Panel, Control (biscuit) |
|
- | |||||
| 3 | W10292012 | Panel, Control (stainless) |
|
- | |||||
| 4 | WPW10167742 | Infinite Switch (3000w) (left Front) (Replaces: W10167742) |
|
Immediately | $ 118.20 | ||||
| 4 | WPW10434452 | Switch, Infinite Dual (right Front) (Replaces: W10434452) |
|
Immediately | $ 140.84 | ||||
| 4 | 5500-287 | Switch, Infinite (right Rear & Left Rear) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 5 | 3196200 | Clip, Spring |
|
$ 9.95 | |||||
| 6 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | W10211373 | Knob, Infinite (biscuit) |
|
- | |||||
| 7 | WPW10211371 | Knob, Infinite (white) (Replaces: W10211371) |
|
Immediately | $ 20.22 | ||||
| 7 | W11193834 | Knob, Infinite (black) (Replaces: W10211372) |
|
$ 84.74 | |||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 341.73 | ||||
| 9 | W11230932 | Bracket, Mounting, Eoc (Replaces: W10138683) |
|
Immediately | $ 80.77 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 208.61 | |||||
| 11 | WPW10476674 | Control, Range (biscuit) (Replaces: W10271761) |
|
$ 437.41 | |||||
| 11 | WPW10476673 | Control, Range (white) (Replaces: W10236239) |
|
$ 439.09 | |||||
| 11 | WPW10476673 | Control, Range (black) (Replaces: W10236240) |
|
$ 439.09 | |||||
| 12 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 13 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.19 | ||||
| 14 | W11846982 | Screw (Replaces: 7101P676-60) |
|
- | |||||
| 15 | WP8273564 | Clip, Rear Upper Cover (Replaces: 8273564) |
|
$ 12.06 |
