01 - Cooktop Parts

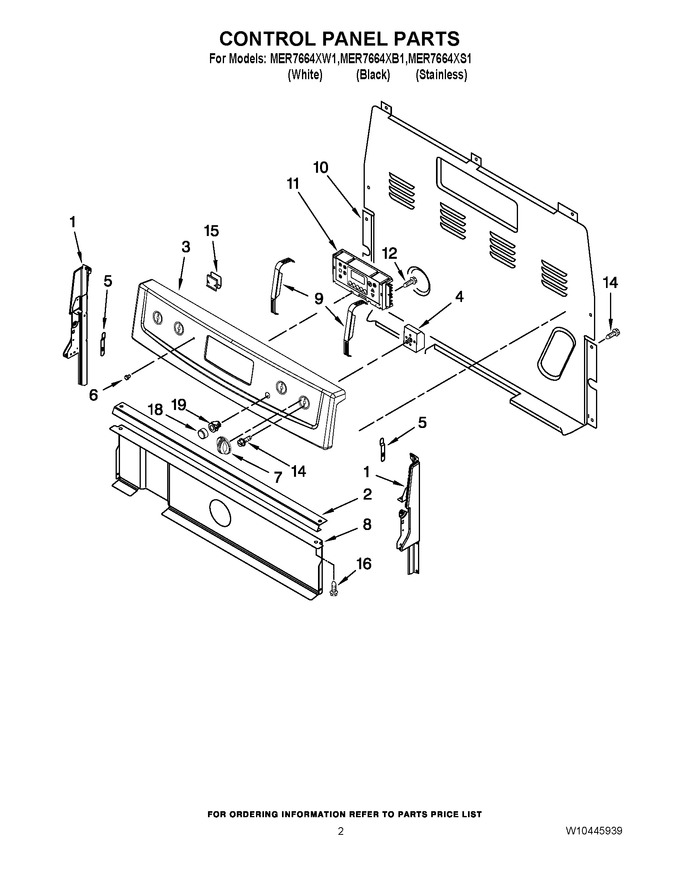

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer And Rack Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white Lh) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 1 | W11219370 | Endcap (white Rh) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 1 | W11219664 | Endcap (black Lh) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 1 | W11219665 | Endcap (black Rh) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 2 | W10525121 | Bracket, Console (Replaces: W10182322) |
|
$ 98.85 | |||||
| 3 | W10315964 | Panel, Control (white) |
|
- | |||||
| 3 | W10315966 | Panel, Control (stainless) |
|
- | |||||
| 3 | W10315965 | Panel, Control (black) |
|
- | |||||
| 4 | WPW10434452 | Switch, Infinite (dual) Rf,lf) (Replaces: W10434452) |
|
Immediately | $ 140.84 | ||||
| 4 | 5500-287 | Switch, Infinite (lf,rr) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 5 | 3196200 | Clip, Spring |
|
$ 10.45 | |||||
| 6 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | W11193834 | Knob, Infinite (black) (Replaces: W10211372) |
|
$ 88.98 | |||||
| 7 | WPW10211371 | Knob, Infinite (white) (Replaces: W10211371) |
|
Immediately | $ 21.23 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 9 | W11230932 | Brkt, Mntg Eoc (Replaces: W10138683) |
|
Immediately | $ 84.81 | ||||
| 10 | WP8272473 | Cover, Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | WPW10476673 | Control, Range (white) (Replaces: W10271759) |
|
$ 461.04 | |||||
| 11 | WPW10476673 | Control, Range (black) (Replaces: W10271760) |
|
$ 461.04 | |||||
| 12 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 15 | WP8273564 | Clip, Cover (Replaces: 8273564) |
|
$ 12.66 | |||||
| 16 | 3196166 | Screw (white) |
|
$ 7.36 | |||||
| 16 | WP3400832 | Screw (black) (Replaces: 3196168) |
|
Immediately | $ 8.18 | ||||
| 18 | 9757492 | Button, Keep Warm (white) |
|
$ 96.01 | |||||
| 18 | 9758491 | Button, Keep Warm (black) |
|
$ 19.74 | |||||
| 19 | W10217758 | Bezel, Keep Warm (black) |
|
$ 28.65 | |||||
| 19 | W10217760 | Bezel, Keep Warm (white) |
|
$ 25.91 |
