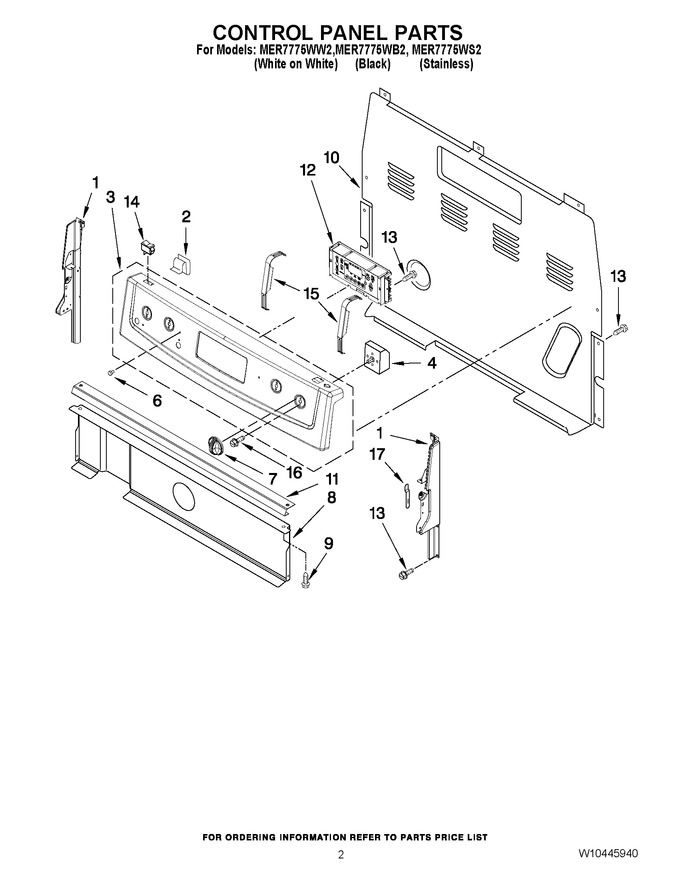

02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer And Rack Parts


05 - Door Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap (white Lh)   (Replaces: W10184433)				$ 42.45
1	W11219370		Endcap (white Rh)   (Replaces: W10184434)				$ 60.83
1	W11219664		Endcap (black Lh)   (Replaces: W10184437)				$ 153.83
1	W11219665		Endcap (black Rh)   (Replaces: W10184438)				$ 45.17
2	WP8273564		Clip   (Replaces: 8273564)				$ 12.66
3	W10292016		Panel, Control (stainless)				$ 138.37
3	W10292013		Panel, Control (white)		Appelez-nous	-
3	W10292015		Panel, Control (black)		Appelez-nous	-
4	WPW10434452		Switch, Infinite (lr,rr)   (Replaces: W10434452)			Immediately	$ 140.84
4	WP3149404		Switch, Infinite (lf,rf)   (Replaces: W10295576)			Immediately	$ 61.45
6	WP3196068		Lens, Light   (Replaces: 3196068)			Immediately	$ 6.26
7	WPW10211371		Knob, Infinite (white)   (Replaces: W10211371)			Immediately	$ 21.23
7	W11193834		Knob, Infinite (black)   (Replaces: W10211372)				$ 88.98
8	W10134247		Shield, Heat			Immediately	$ 358.82
9	3196166		Screw (white)				$ 7.36
9	WP3400832		Screw (black)   (Replaces: 3196168)			Immediately	$ 8.18
10	WP8272473		Cover, Upper   (Replaces: 8272473)				$ 219.04
11	W10525121		Brkt-mntg, Console   (Replaces: W10182322)				$ 98.85
12	WPW10271837		Control, Range (black)   (Replaces: W10271837)				$ 360.35
12	W10271836		Control, Range (white)		Appelez-nous	-
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
14	3149360		Switch-rocker (white)				$ 89.01
14	WP4314961		Switch-rocker (black)   (Replaces: 3148564)				$ 93.95
15	W11230932		Brkt, Mntg Eoc   (Replaces: W10138683)			Immediately	$ 84.81
16	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
17	3196200		Clip, Spring				$ 10.45
