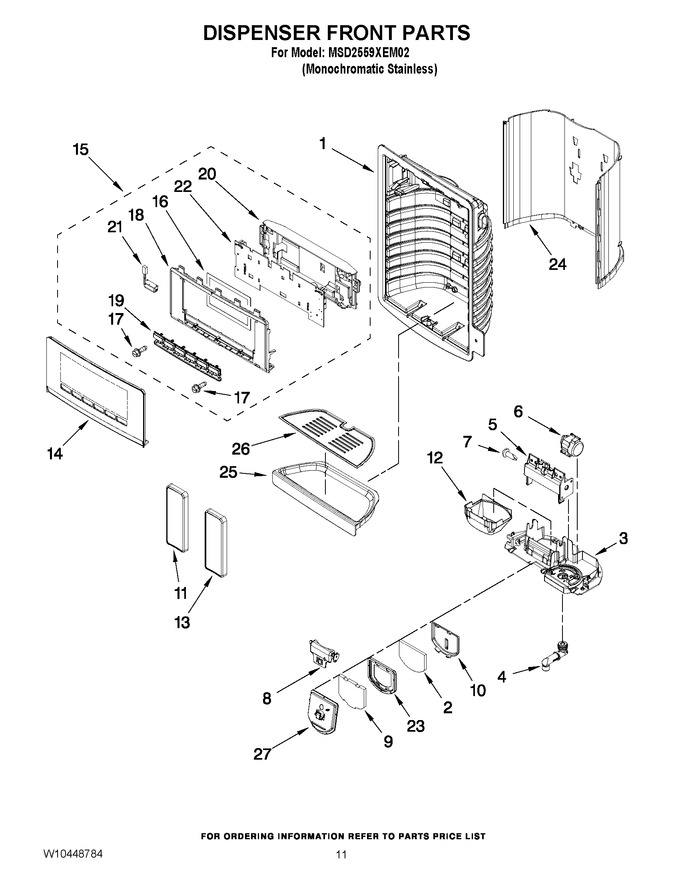

07 - Dispenser Front Parts


08 - Motor And Ice Container Parts


09 - Air Flow Parts


10 - Unit Parts


11 - Icemaker Parts


12 - Control Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WPW10331454		Insulation   (Replaces: W10331454)				$ 25.75
3	W10286902		Separator, Fixed		Appelez-nous	-
4	WP2305235		Spigot-body Assy   (Replaces: W10317267)			Immediately	$ 147.07
5	W10174827		Bracket, Ice Door				$ 76.42
6	WPW10205978		Motor, Ice Door   (Replaces: W10205978)				$ 104.12
7	W10174818		Clip, Mtr Coup		Appelez-nous	-
8	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 41.85
9	WPW10331456		Insulation   (Replaces: W10331456)				$ 25.75
10	WPW10317279		Door, Ice   (Replaces: W10317279)				$ 20.52
11	W10334789		Pad, Ice Dispenser (nickel)		Appelez-nous	-
12	WPW10435760		Guide, Ice   (Replaces: W10339578)			Immediately	$ 23.94
13	W10334813		Pad, Water Dispenser (nickel)				$ 42.69
14	W10286928		Fascia Assy (black)		Appelez-nous	-
15	WPW10286929		Ui Assy, Stealth   (Replaces: W10286924)				$ 155.98
16	W10254293		Barrier, Moisture		Appelez-nous	-
17	2006254		Screw   (Replaces: 489214)				$ 13.79
18	W10286907		Frame, Fascia		Appelez-nous	-
19	W10286926		Tree, Button		Appelez-nous	-
20	W10254277		Cover, Board		Appelez-nous	-
21	W11290115		Led Assy   (Replaces: W10238083)				$ 84.45
22	WPW10286929		Ctrl-elek, Stealth   (Replaces: W10291367)				$ 155.98
23	WPW10317282		Seal   (Replaces: W10317282)				$ 27.18
24	W10286900		False Wall (stainless)		Appelez-nous	-
25	W10286896		Drip Tray (stainless)		Appelez-nous	-
26	W10286922		Grate, Drip Tray (stainless)		Appelez-nous	-
27	W10339582		Clip		Appelez-nous	-
