SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Broiler Parts

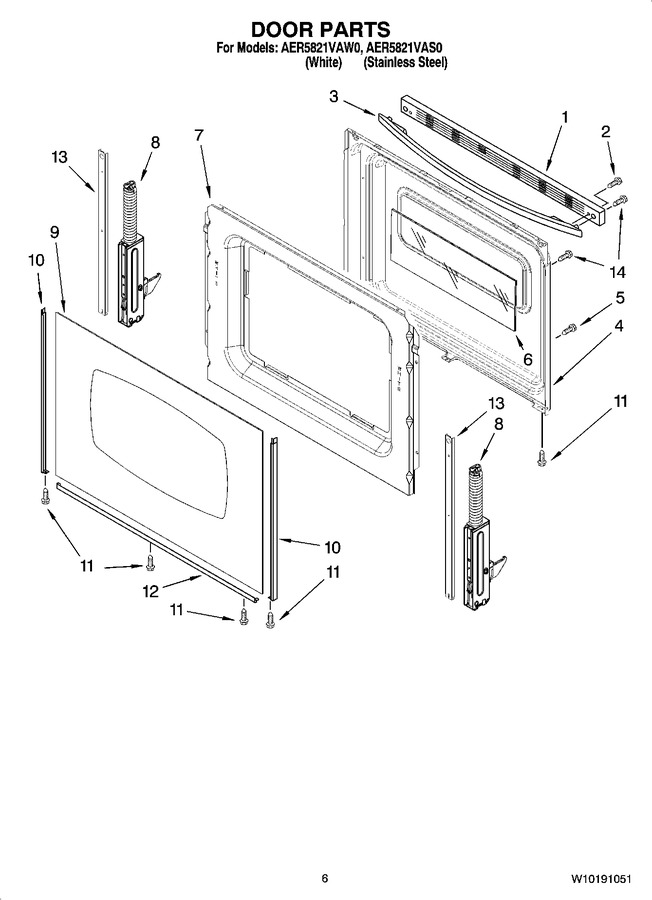

05 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10067400		Trim, Top (black / Stainless)		Appelez-nous	-
1	W10067350		Trim, Top (white)		Appelez-nous	-
2	8534065		Screw				$ 35.92
3	9758339		Handle, Door (white)		Appelez-nous	-
3	9758341		Handle, Door (black)		Appelez-nous	-
4	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 372.89
5	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
6	WP8053948		Window, Inner   (Replaces: 9758162)				$ 178.28
7	W11685635		Retainer, Insul.   (Replaces: 9761501)				$ 188.29
8	W10347466		Hinges (2) (hinge (stls Door))   (Replaces: 9761493)			Immediately	$ 219.84
8	W10347465		Hinges (2) (hinge, (reg. Door))   (Replaces: 9761494)				$ 120.38
9	W10154806		Glass, Outer (black / Stainless)		Appelez-nous	-
9	W10175470		Glass, Outer (white)		Appelez-nous	-
10	WP8523172		Trim, Side (white Left Hand)   (Replaces: 8523172)			Immediately	$ 69.93
10	W10761014		Trim, Side (black Right Hand)   (Replaces: 8523165)			Immediately	$ 72.96
10	W10761018		Trim, Side (black Left Hand)   (Replaces: 8523171)			Immediately	$ 53.77
10	WP8523166		Trim, Side (white Right Hand)   (Replaces: 8523166)			Immediately	$ 84.23
11	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
12	W11594186		Trim, Lower (white)   (Replaces: 8523175)			Immediately	$ 61.37
12	WP8523180		Trim, Lower (black)   (Replaces: 8523180)				$ 169.00
13	W11502236		Strap, Door   (Replaces: W10113759)			Immediately	$ 27.68
14	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
	350942		Paint, Pressurized Spray (12 Oz.) (primer) (white)   (Replaces: 206922)				$ 94.14
	799344		Paint, Bulk (1 Qt.) (white (uncut))				$ 237.46
	978883		Paint, Bulk (1 Qt.) (almond (uncut))		Appelez-nous	-
	W10111776		Harness, Wire (main)		Appelez-nous	-
	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
	W11839019		Anti-tip Kit   (Replaces: W10017440)			Immediately	$ 28.54
	W10111769		Harness, Wire (cooktop Left)		Appelez-nous	-
	W10111770		Harness, Wire (cooktop Right)		Appelez-nous	-
	W11172424		Harness, Wire (sensor/dr Switch)   (Replaces: W10083650)				$ 113.78
	3184020		Wire, Ground   (Replaces: 8523279)				$ 86.92
	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 12.30
	WPW10144763		Tie, Wire (ceran Cktop)   (Replaces: W10144763)				$ 7.93
	313660		Clip, Wire Ground		Appelez-nous	-
	W11244557		Screw   (Replaces: 3196173)				$ 14.29
	WP3196174		Screw (grnd Wire / Back)   (Replaces: 3196174)			Immediately	$ 8.44
	350956		Paint, Pressurized Spray (12 Oz.) (almond)				$ 54.01
	3191048		Cleaner, Glass		Appelez-nous	-
	242828		Wire, Black 12 Ga. 150 C		Appelez-nous	-
	242821		Wire, Blue 14 Ga. 150 C		Appelez-nous	-
	242822		Wire, Brown 14 Ga. 150 C		Appelez-nous	-
	242830		Wire, Brown 14 Ga. 200 C		Appelez-nous	-
	261582		Grease		Appelez-nous	-
	242823		Wire, Green 14 Ga. 150 C		Appelez-nous	-
	242824		Wire, Orange 14 Ga. 150 C		Appelez-nous	-
	242825		Wire, Red 14 Ga. 150 C		Appelez-nous	-
	242831		Wire, Red 14 Ga. 200 C				$ 342.23
	242827		Wire, Yellow 14 Ga. 150 C		Appelez-nous	-
	4396923		Pan, Broiler			Immediately	$ 60.71
	799832		Kit, Porcelain Repair (white)		Appelez-nous	-
	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 87.22
	WP3196154		Screw   (Replaces: 3196154)				$ 8.44
	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
	511873		Paint, Touch-up (1/2oz.) White Porcelain (2 Oz.)				$ 51.75
	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 40.12
	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)				$ 59.89
