01 - Top And Cabinet Parts


02 - Console And Water Inlet Parts


03 - Basket And Tub Parts

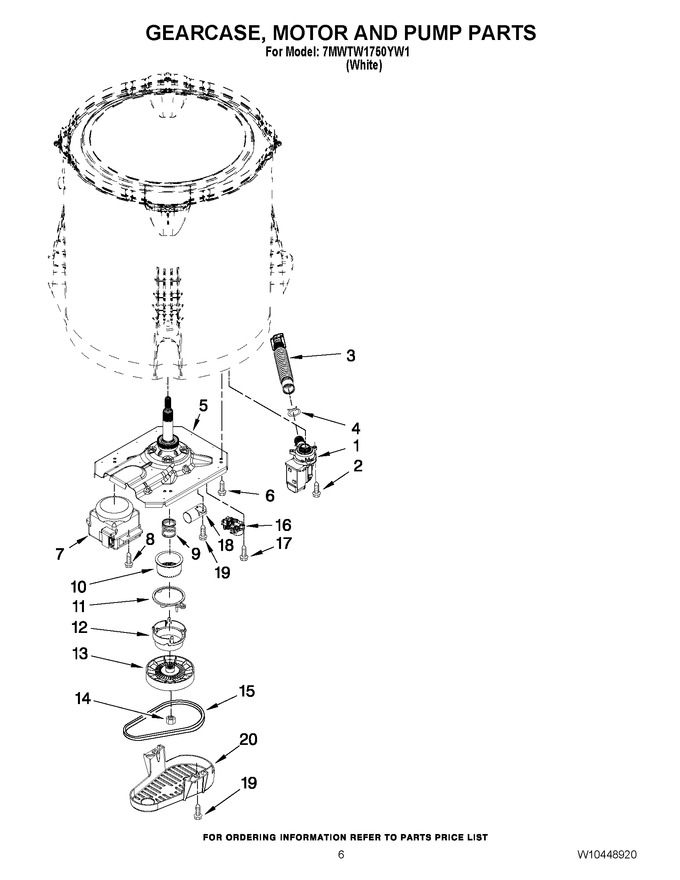

04 - Gearcase, Motor And Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10276397		Pump Assembly, Drain   (Replaces: W10276397)			Immediately	$ 138.34
2	WPW10004910		Screw, 12-16 X 1.25   (Replaces: W10004910)				$ 8.39
3	W10899966		Hose, Inner Drain Assembly   (Replaces: W10444123)			Immediately	$ 35.78
4	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 8.81
5	W11132267		Gearcase Assembly (includes Items 7, 8, 9, 10 & 13 On Page 5)   (Replaces: W10006379)			Immediately	$ 305.02
6	WPW10249633		Screw, 7.2-1.6 X 30   (Replaces: W10249633)			Immediately	$ 7.55
7	W10832724		Motor, Drive   (Replaces: W10249628)			Immediately	$ 333.55
8	W11685857		Screw, M8-1.25 X 20   (Replaces: W10094780)				$ 14.81
9	W10721967		Spring, Splutch (includes Items 10, 11, 12 & 13)   (Replaces: W10006382)			Immediately	$ 55.68
10	W10721967		Slider, Splutch (includes Items 9, 11, 12 & 13)   (Replaces: W10006352)			Immediately	$ 55.68
11	W10721967		Cam Ring, Splutch (includes Items 9, 10, 12 & 13)   (Replaces: W10006353)			Immediately	$ 55.68
12	W10721967		Cam, Splutch (includes Items 9, 10, 11 & 13)   (Replaces: W10006354)			Immediately	$ 55.68
13	W10721967		Pulley   (Replaces: W10006356)			Immediately	$ 55.68
14	W10759923		Nut, Pulley   (Replaces: W10163336)				$ 8.35
15	WPW10006384		Belt, Drive   (Replaces: W10006384)			Immediately	$ 38.66
16	WPW10006355		Actuator, Shift   (Replaces: W10006355)			Immediately	$ 78.13
17	W11596033		Screw, 6-32 X 1.00   (Replaces: 9741052)				$ 14.23
18	W10804664		Capacitor, Motor Run   (Replaces: W10278117)			Immediately	$ 65.23
19	WP273556		Screw, 10-16 X 5/8   (Replaces: 357640)			Immediately	$ 8.43
20	WPW10427633		Shield, Pulley Cover   (Replaces: W10006383)			Immediately	$ 49.78
