SELECT A DIAGRAM

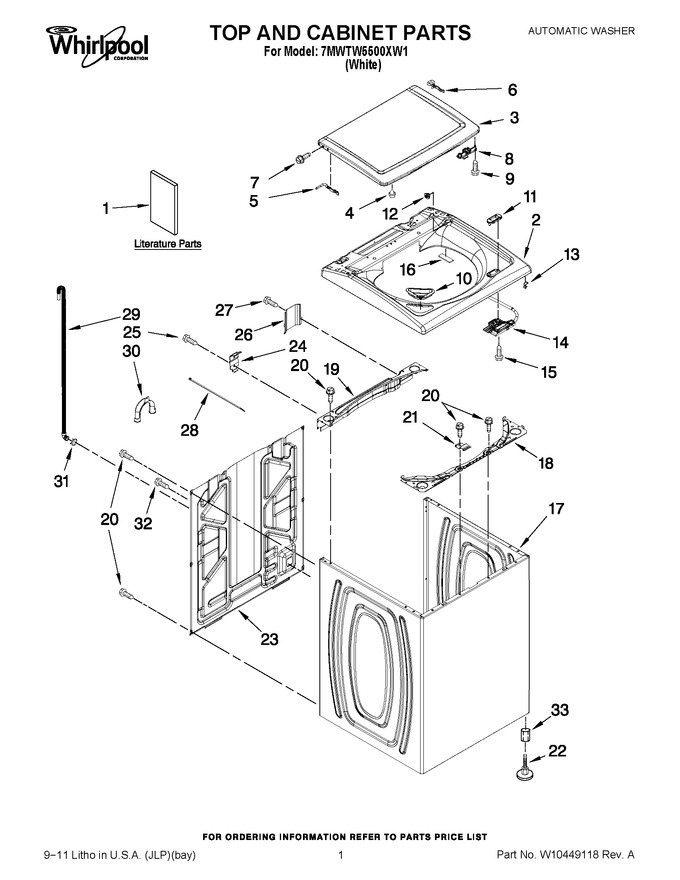

01 - Top And Cabinet Parts


02 - Console And Dispenser Parts


03 - Basket And Tub Parts


04 - Gearcase, Motor And Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10329765		Installation Instructions		Appelez-nous	-
1	W10366292		Energy Guide		Appelez-nous	-
1	W10331104		Quick Start Guide		Appelez-nous	-
1	W10338674		Tech Sheet		Appelez-nous	-
1	W10366279		Use & Care Guide		Appelez-nous	-
2	WPW10246376		Top   (Replaces: W10246376)				$ 343.49
3	W10339997		Lid (includes Item 4)		Appelez-nous	-
4	WP9724509		Bumper, Lid   (Replaces: 9724509)			Immediately	$ 7.93
5	W10295775		Hinge, Wire (l.h.)				$ 21.84
6	W10569655		Hinge Wire (r.h.)   (Replaces: W10294031)				$ 22.85
7	WPW10119828		Screw, Lid Hinge   (Replaces: W10119828)			Immediately	$ 7.19
8	WPW10240513		Strike, Lid Lock   (Replaces: W10240513)			Immediately	$ 39.57
9	WPW10273971		Screw, 6-19 X 1/2   (Replaces: W10273971)			Immediately	$ 7.19
10	W10854969		Dispenser, Bleach   (Replaces: W10240977)				$ 104.67
11	WPW10392041		Bezel, Lid Lock   (Replaces: W10392041)			Immediately	$ 7.62
12	W10293272		Bearing, Lid Hinge (left)				$ 12.86
12	W10293230		Bearing, Lid Hinge (right)				$ 16.04
13	WP90016		Clip, Lid Lock Harness   (Replaces: 90016)				$ 11.32
14	W10404050		Latch, Lid Lock Assembly   (Replaces: W10238287)			Immediately	$ 81.88
15	WP8281163		Screw, 8-16 X 1/2   (Replaces: 8281163)			Immediately	$ 10.19
16	W10684258		Pad, Lid Hinge   (Replaces: W10330080)				$ 34.73
17	W10596395		Cabinet (includes Item 22)   (Replaces: W10251994)				$ 458.85
18	W11695476		Brace, Cabinet Top - Front   (Replaces: W10215098)				$ 75.99
19	W11712680		Brace, Cabinet Top - Rear   (Replaces: W10215099)				$ 98.93
20	WP489069		Screw, 8-18 X 3/8   (Replaces: 1157158)			Immediately	$ 7.86
21	WPW10248088		Lock, Top   (Replaces: W10248088)				$ 17.93
22	W10739673		Foot Assembly, Leveling   (Replaces: W10335586)				$ 13.65
23	W11486091		Panel, Rear   (Replaces: W10250884)			Immediately	$ 312.11
24	W10432012		Hinge, Top   (Replaces: W10215102)				$ 85.20
25	WP489128		Screw, 8-32 X 3/8   (Replaces: W10142728)				$ 10.88
26	W10676061		Cover, Harness   (Replaces: W10215139)				$ 35.02
27	W10846509		Screw, 10-23 X 5/8   (Replaces: 3400076)			Immediately	$ 7.76
28	WPW10339879		Cable Tie   (Replaces: W10339879)				$ 7.90
29	W11244231		Hose, Outer Drain Assembly (includes Items 30 & 31)   (Replaces: W10221546)			Immediately	$ 32.07
30	WPW10280024		U-bend, Drain Hose   (Replaces: W10280024)				$ 79.53
31	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
32	WP9740848		Screw, 8-18 X 1/2   (Replaces: 9740848)			Immediately	$ 7.86
33	WP3359452		Nut, Locking   (Replaces: 3359452)			Immediately	$ 7.19

    View Diagram in Separate Window       Print Part List
