SELECT A DIAGRAM

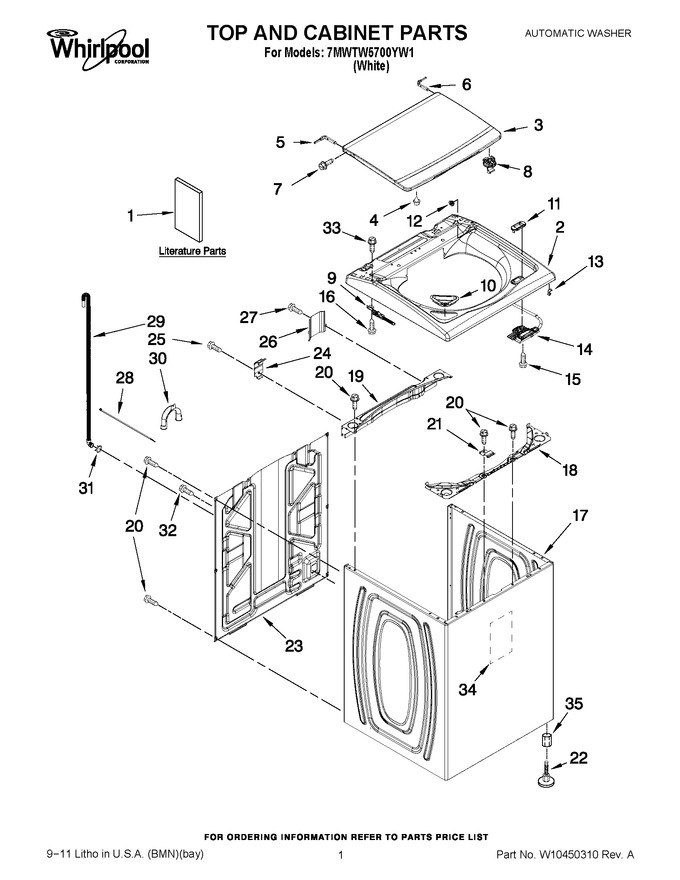

01 - Top And Cabinet Parts


02 - Console And Dispenser Parts


03 - Basket And Tub Parts


04 - Gearcase, Motor And Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10329765		Installation Instructions		Appelez-nous	-
1	W10366292		Energy Guide		Appelez-nous	-
1	W10331104		Quick Start Guide		Appelez-nous	-
1	W10338674		Tech Sheet		Appelez-nous	-
1	W10366278		Use & Care Guide		Appelez-nous	-
2	WPW10246376		Top   (Replaces: W10246376)				$ 343.49
3	WPW10427116		Lid, Glass Assembly (includes Items 4 & 8)   (Replaces: W10427116)				$ 446.86
4	WP9724509		Bumper, Lid   (Replaces: 9724509)			Immediately	$ 7.93
5	WP8563965		Hinge, Wire (l.h.)   (Replaces: 8563965)			Immediately	$ 29.44
6	WP8572974		Hinge Wire (r.h.)   (Replaces: 8572974)			Immediately	$ 29.05
7	W11404293		Screw, Lid Hinge   (Replaces: W10339706)			Immediately	$ 14.04
8	WPW10239968		Strike, Lid Lock   (Replaces: W10239968)				$ 77.69
9	W10270398		Hinge, Spring Assembly (left)				$ 128.81
9	W10270399		Hinge, Spring Assembly (right)				$ 124.73
10	W10854969		Dispenser, Bleach   (Replaces: W10240977)				$ 104.67
11	WPW10392041		Bezel, Lid Lock   (Replaces: W10392041)			Immediately	$ 7.62
12	W10293293		Bearing, Lid Hinge (right)				$ 16.64
12	W10293653		Bearing, Lid Hinge (left)				$ 16.64
13	WP90016		Clip, Lid Lock Harness   (Replaces: 90016)				$ 11.32
14	W10404050		Latch, Lid Lock Assembly   (Replaces: W10238287)			Immediately	$ 81.88
15	W11700520		Screw, 8-16 X 1/2   (Replaces: 3400061)				$ 13.60
16	WP693995		Screw, 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.19
17	W10596395		Cabinet (includes Items 18, 19, 20, 22 & 34)   (Replaces: W10251994)				$ 458.85
18	W11695476		Brace, Cabinet Top - Front   (Replaces: W10215098)				$ 75.99
19	W11712680		Brace, Cabinet Top - Rear   (Replaces: W10215099)				$ 98.93
20	WP489069		Screw, 8-18 X 3/8   (Replaces: 1157158)			Immediately	$ 7.86
21	WPW10248088		Lock, Top   (Replaces: W10248088)				$ 17.93
22	W10739673		Foot Assembly, Leveling   (Replaces: W10335586)				$ 13.65
23	W11486091		Panel, Rear   (Replaces: W10250884)			Immediately	$ 312.11
24	W10432012		Hinge, Top   (Replaces: W10215102)				$ 85.20
25	WP489128		Screw, 8-32 X 3/8   (Replaces: W10142728)				$ 10.88
26	W10676061		Cover, Harness   (Replaces: W10215139)				$ 35.02
27	W10846509		Screw, 10-23 X 5/8   (Replaces: 3400076)			Immediately	$ 7.76
28	WPW10339879		Cable Tie   (Replaces: W10339879)				$ 7.90
29	W11244231		Hose, Outer Drain Assembly (includes Items 30 & 31)   (Replaces: W10221546)			Immediately	$ 32.07
30	WPW10280024		U-bend, Drain Hose   (Replaces: W10280024)				$ 79.53
31	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
32	WP9740848		Screw, 8-18 X 1/2   (Replaces: 9740848)			Immediately	$ 7.86
33	WP313808		Screw, 6-32 X 1/4   (Replaces: 311932)				$ 7.60
34	W11096159		Cabinet, Damper Sound   (Replaces: W10414221)				$ 27.36
35	WP3359452		Nut, Lock   (Replaces: 3359452)			Immediately	$ 7.19

    View Diagram in Separate Window       Print Part List
