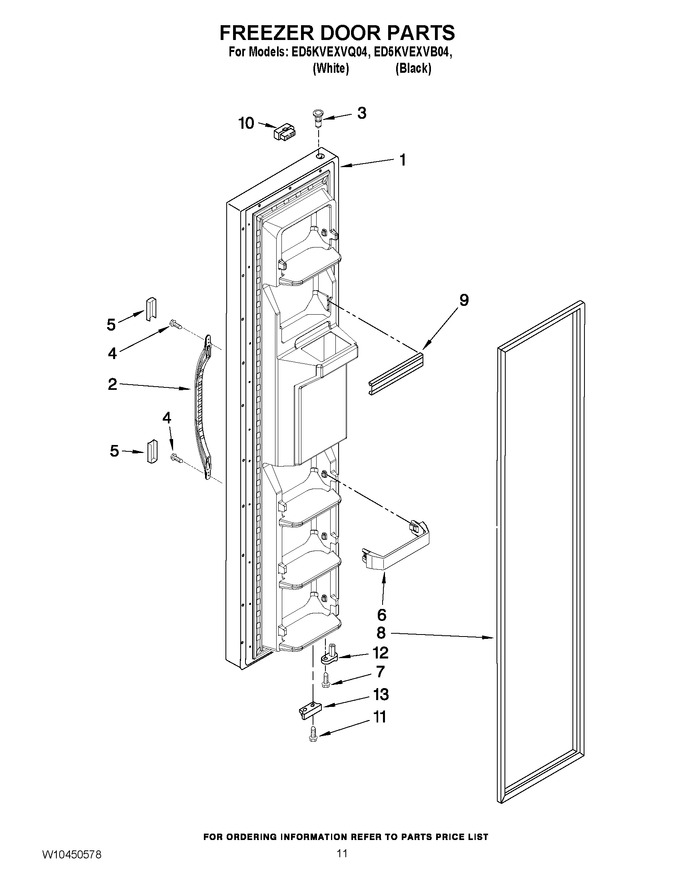

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10330019		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10231614		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless Vcm)		Appelez-nous	-
1	W10330021		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	W10285542		Handle (white)				$ 71.46
2	W10285540		Handle (black)				$ 71.85
3	WP2182181		Thimble Top   (Replaces: 2182181)				$ 8.15
4	WP489491		Screw   (Replaces: 489491)				$ 7.30
5	WP2194272B		Trim, Handle (black)   (Replaces: 2194272B)				$ 7.30
5	2194272W		Trim, Handle (white)				$ 5.85
6	WP2309718		Trivet   (Replaces: 2309718)				$ 61.49
7	WP3400012		Screw   (Replaces: W10142285)				$ 8.26
8	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
8	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221302)			Immediately	$ 333.00
9	WPW10307490		Trim, Door Shelf   (Replaces: W10307490)			Immediately	$ 24.27
10	WP2154473		Connector   (Replaces: 2154473)				$ 24.83
11	W10112233		Screw		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	W10219814		Bracket, Door Stop (black)		Appelez-nous	-
13	W10219813		Bracket, Door Stop (white)		Appelez-nous	-
