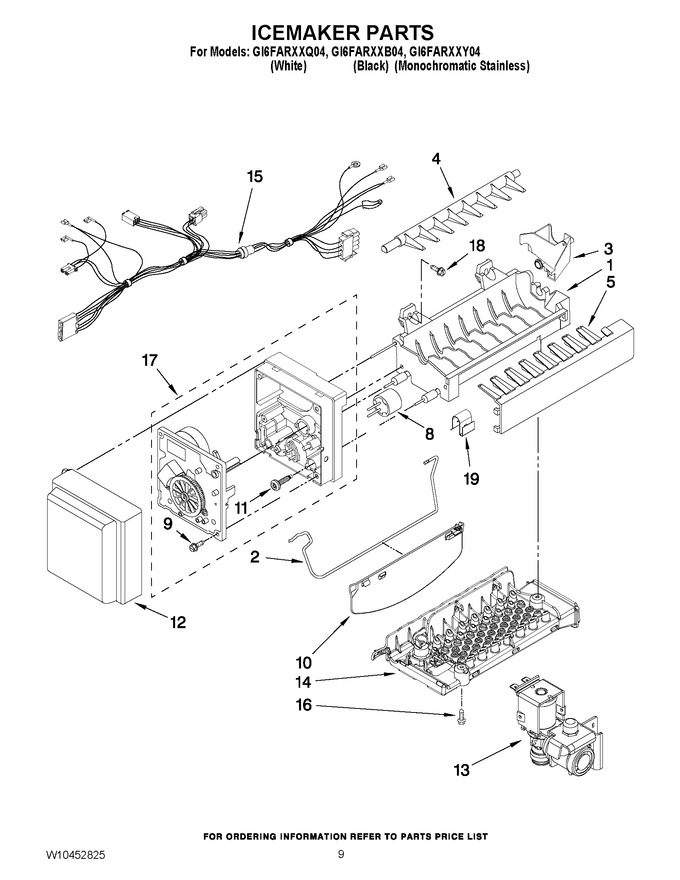

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10300025 | Mold & Heater Assembly (also Order 542638 Grease) (Replaces: W10300025) |
|
Immediately | $ 201.92 | ||||
| 2 | WPW10378254 | Arm, Shutoff (Replaces: W10378254) |
|
$ 79.87 | |||||
| 3 | W10377998 | Cup, Fill |
|
$ 83.03 | |||||
| 4 | W10318914 | Ejector |
|
$ 38.08 | |||||
| 5 | WPW10122563 | Ice Stripper (Replaces: W10122563) |
|
$ 99.42 | |||||
| 8 | WP627985 | Thermostat (also Order 542369 Cement) (Replaces: W10290336) |
|
$ 114.64 | |||||
| 9 | W10001240 | Screw (3) |
|
$ 9.22 | |||||
| 10 | WPW10121440 | Extension, Shutoff Arm (Replaces: W10121440) |
|
$ 93.87 | |||||
| 11 | 8533917 | Screw (2) |
|
$ 14.04 | |||||
| 12 | W10460383 | Cover (Replaces: W10388303) |
|
$ 103.07 | |||||
| 13 | WPW10498990 | Valve-single (Replaces: W10342318) |
|
Immediately | $ 210.69 | ||||
| 14 | WPW10312691 | Impinger Assy. (Replaces: W10312691) |
|
$ 366.67 | |||||
| 15 | W11029433 | Harness, Icemaker (Replaces: W10404016) |
|
$ 267.27 | |||||
| 16 | 67006425 | Screw, Impinger (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 17 | W10882923 | Module Assembly (Replaces: W10377147) |
|
Immediately | $ 199.01 | ||||
| 18 | W10001240 | Screw (3) |
|
$ 9.22 | |||||
| 19 | WP628379 | Clip (Replaces: 628379) |
|
$ 11.10 | |||||
| 100 | W10882923 | Icemaker Assembly (Replaces: W10377151) |
|
Immediately | $ 199.01 | ||||
| NI | 10244904SP | Coupling |
|
- |
