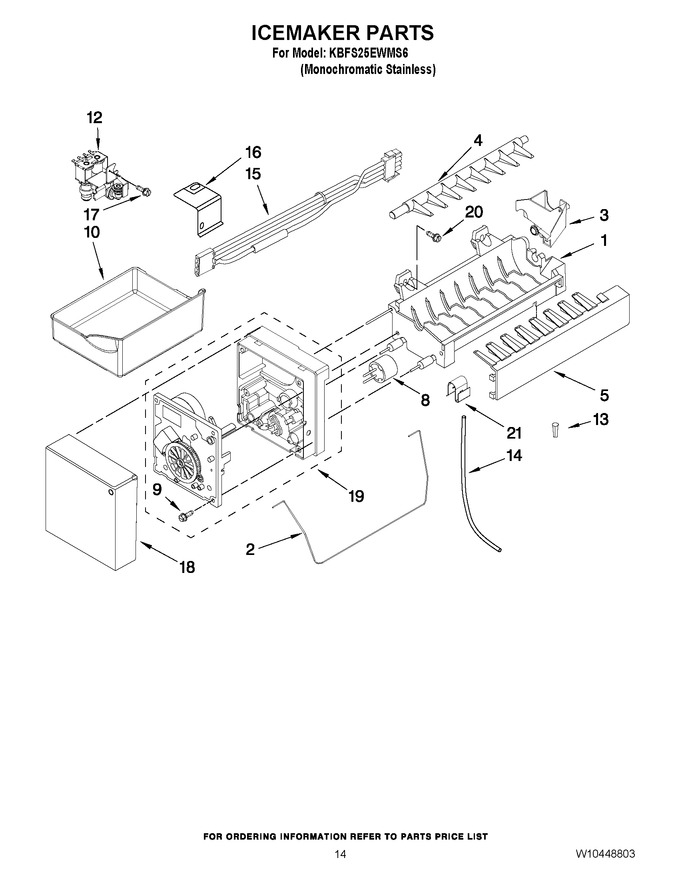

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10300025 | Mold & Heater Assembly (also Order 542638 Grease) (Replaces: W10300025) |
|
Immediately | $ 201.92 | ||||
| 2 | WPW10378255 | Arm-shut Off (Replaces: W10378255) |
|
$ 92.63 | |||||
| 3 | W10410073 | Cup, Fill |
|
$ 84.07 | |||||
| 4 | W10318914 | Ejector |
|
$ 38.08 | |||||
| 5 | WPW10122563 | Ice Stripper (Replaces: W10122563) |
|
$ 99.42 | |||||
| 8 | WP627985 | Thermostat (also Order 542369 Cement) (Replaces: W10290336) |
|
$ 114.64 | |||||
| 9 | WP489464 | Screw (3) (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 10 | WPW10171529 | Pan, Ice (Replaces: W10171529) |
|
Immediately | $ 189.55 | ||||
| 12 | WPW10420083 | Valve, Water Inlet (Replaces: W10420083) |
|
Immediately | $ 159.91 | ||||
| 13 | WPA3223101 | Insert, Tube (Replaces: A3223101) |
|
Immediately | $ 8.21 | ||||
| 14 | W11120581 | Tubing, Plastic (Replaces: B5705333) |
|
$ 124.93 | |||||
| 15 | WPW10458985 | Harness, Ice Maker (Replaces: W10404661) |
|
$ 111.35 | |||||
| 16 | WP2256087 | Bracket, Icemaker (Replaces: 2256086) |
|
$ 97.65 | |||||
| 17 | WP489128 | Screw (Replaces: 12991604) |
|
$ 11.40 | |||||
| 18 | W10377174 | Cover |
|
$ 81.33 | |||||
| 19 | WPW10281342 | Module Assembly (Replaces: W10281342) |
|
$ 280.48 | |||||
| 20 | W10001240 | Screw (3) |
|
$ 9.22 | |||||
| 21 | WP628379 | Clip (Replaces: 628379) |
|
$ 11.10 | |||||
| 100 | W10884390 | Icemaker Assembly (Replaces: W10377152) |
|
Immediately | $ 149.65 | ||||
| NI | 10244904 | Coupling |
|
$ 25.37 |
