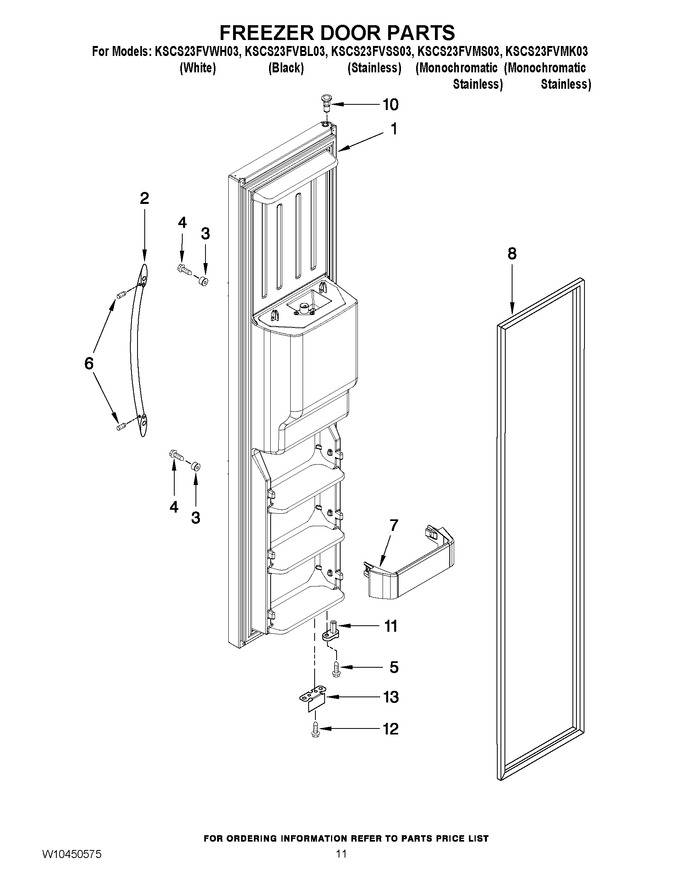

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10149671		Freezer Door (includes No.8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10318287		Freezer Door (includes No.8 And Dispenser Front Parts) (monochromatic Stainless)		Appelez-nous	-
1	W10318288		Freezer Door (includes No.8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
1	W10149670		Freezer Door (includes No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	2319727B		Handle (black)				$ 109.87
2	2319727W		Handle (white)				$ 106.80
2	2319727S		Handle (stainless Steel)				$ 133.96
3	WPW10170540		Stud, Handle   (Replaces: W10170540)			Immediately	$ 8.51
4	WPW10170540		Screw   (Replaces: W10170540)			Immediately	$ 8.51
5	WP3400012		Screw   (Replaces: W10142285)				$ 7.82
6	WPW10010150		Set Screw (black)   (Replaces: W10010150)				$ 7.88
6	W11366418		Set Screw (chrome)   (Replaces: W10010140)			Immediately	$ 15.79
7	WP2223860		Shelf Bin (3)   (Replaces: 2223860)			Immediately	$ 84.05
8	2326343		Door Gasket, Magnetic (apollo Grey)		Appelez-nous	-
8	2223912		Door Gasket, Magnetic (black)		Appelez-nous	-
8	2223850		Door Gasket, Magnetic (mist Beige)		Appelez-nous	-
10	WP2182181		Thimble-top   (Replaces: 2308091)				$ 7.76
11	2307050		Door Closer, Upper Cam				$ 39.47
12	WPW10142233		Screw   (Replaces: W10142233)				$ 8.39
13	2306940		Bracket, Door Stop (chrome)				$ 97.08
13	2306940B		Bracket, Door Stop (black)				$ 37.11
NI	2310224		Wire Harness, Freezer Door		Appelez-nous	-
NI	W10291319		Tube, Door		Appelez-nous	-
