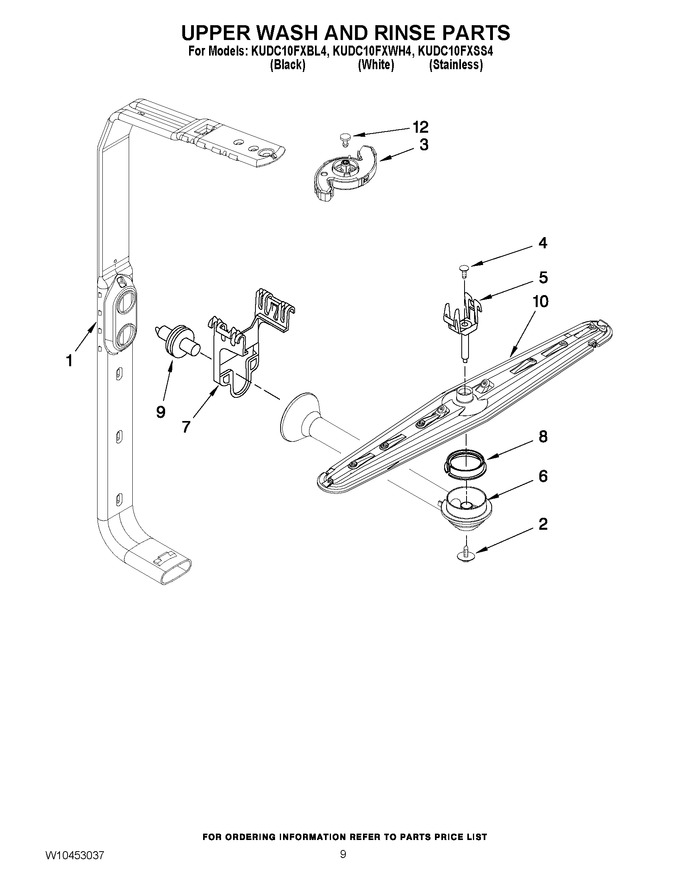

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10077863 | Feed Tube Assembly (also Includes Items 3 & 12) (Replaces: W10077863) |
|
Immediately | $ 187.94 | ||||
| 2 | WPW10349488 | Screw (Replaces: W10349488) |
|
$ 8.97 | |||||
| 3 | 8193983 | Sprayarm, 3rd Level (Replaces: 8557720) |
|
Immediately | $ 25.27 | ||||
| 4 | WPW10118464 | Fastener. Push-in (Replaces: W10118464) |
|
$ 11.18 | |||||
| 5 | WPW10082867 | Mount (Replaces: W10082867) |
|
$ 9.11 | |||||
| 6 | WPW10323424 | Manifold (Replaces: W10323424) |
|
Immediately | $ 60.98 | ||||
| 7 | W10082832 | Hanger |
|
$ 5.83 | |||||
| 8 | WP8268433 | Seal (Replaces: 8268433) |
|
Immediately | $ 11.77 | ||||
| 9 | WPW10082831 | Probe (Replaces: W10082831) |
|
Immediately | $ 48.24 | ||||
| 10 | WPW10082841 | Sprayarm (Replaces: W10082841) |
|
Immediately | $ 82.56 | ||||
| 12 | WP3400918 | Retainer (Replaces: 3400918) |
|
Immediately | $ 32.74 |
