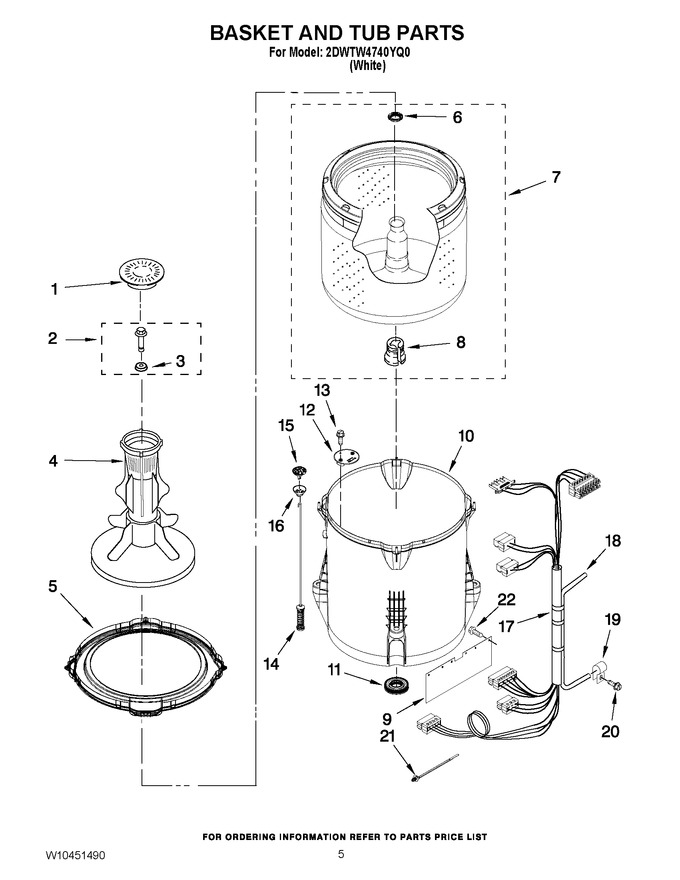

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3352483 | Cap, Agitator (Replaces: 3352483) |
|
$ 62.15 | |||||
| 2 | W10772621 | Screw & Washer Assembly (Replaces: W10003790) |
|
Immediately | $ 5.30 | ||||
| 3 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 11.09 | ||||
| 4 | WPW10131112 | Agitator (Replaces: 63377) |
|
Immediately | $ 137.00 | ||||
| 5 | WPW10215108 | Ring, Tub (Replaces: W10215108) |
|
$ 212.28 | |||||
| 6 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 11.56 | ||||
| 7 | W10738339 | Basket Assembly (Replaces: W10389330) |
|
$ 279.14 | |||||
| 8 | WP389140 | Block, Basket Drive (Replaces: 389140) |
|
Immediately | $ 27.49 | ||||
| 9 | W10339098 | Shield, Splash |
|
$ 25.85 | |||||
| 10 | W10371566 | Tub (Replaces: W10238320) |
|
$ 356.34 | |||||
| 11 | W10324647 | Seal, Tub (Replaces: W10006371) |
|
Immediately | $ 93.50 | ||||
| 12 | WPW10215093 | Filter, Drain Pump (Replaces: W10215093) |
|
$ 65.26 | |||||
| 13 | WP8533928 | Screw, 8-18 X 3/4 (Replaces: 8533928) |
|
Immediately | $ 8.26 | ||||
| 14 | W10780048 | Damper Assembly, Tub Suspension (set Of 4-includes Items 15 & 16) (Replaces: W10257088) |
|
Immediately | $ 93.48 | ||||
| 15 | W10215136 | Ball, Suspension (set Of 4) |
|
- | |||||
| 16 | W10256551 | Bushing,suspension (set Of 4) |
|
- | |||||
| 17 | WPW10422641 | Harness, Lower (includes Items18 & 21) (Replaces: W10422641) |
|
$ 254.98 | |||||
| 18 | WP353244 | Hose, Pressure Switch (Replaces: 353244) |
|
Immediately | $ 86.67 | ||||
| 19 | W10005430 | Clamp, Pressure Hose Retainer |
|
Immediately | $ 9.53 | ||||
| 20 | WPW10109200 | Screw, 10-16 X 3/4 (Replaces: 8533943) |
|
Immediately | $ 8.80 | ||||
| 21 | WPW10298887 | Cable Tie (Replaces: W10298887) |
|
$ 7.98 | |||||
| 22 | W10429200 | Retainer, Push In |
|
- |
