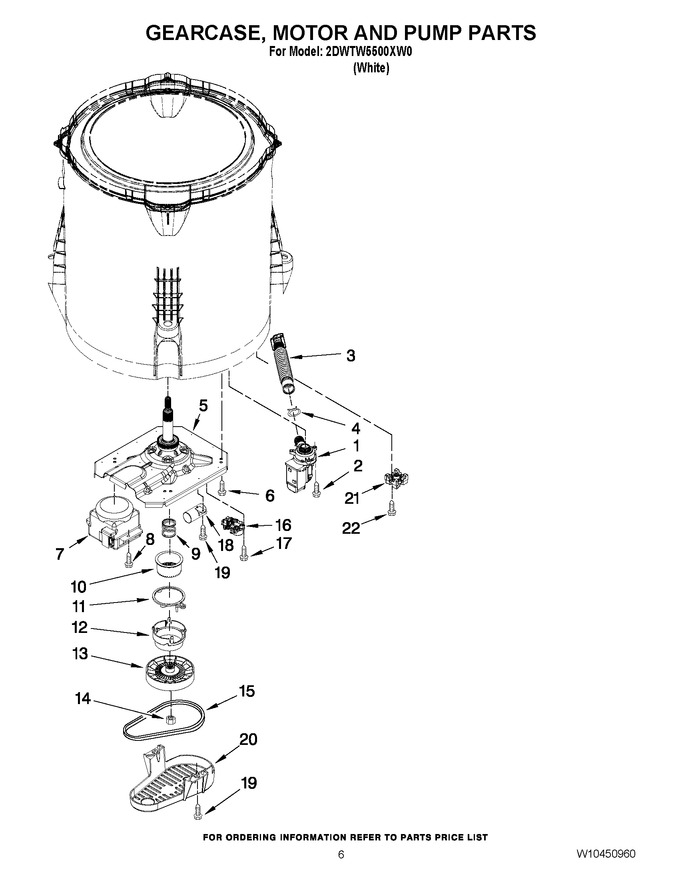

04 - Gearcase, Motor And Pump Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10297342 | Pump Assembly,drain (Replaces: W10297342) |
|
$ 310.13 | |||||
| 2 | WPW10004910 | Screw, 12-16 X 1.25 (Replaces: W10004910) |
|
$ 7.95 | |||||
| 3 | W10899966 | Hose, Inner Drain Assembly (includes Item 4) (Replaces: W10444123) |
|
Immediately | $ 34.08 | ||||
| 4 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 8.39 | ||||
| 5 | W11132267 | Gearcase Assembly (includes Items 7, 8, 9, 10 & 13 On Page 5) (Replaces: W10006379) |
|
Immediately | $ 305.02 | ||||
| 6 | WPW10249633 | Screw, 7.2-1.6 X 30 (Replaces: W10249633) |
|
Immediately | $ 7.19 | ||||
| 7 | WPW10249629 | Motor, Drive (Replaces: W10249629) |
|
$ 217.93 | |||||
| 8 | W11685857 | Screw, M8-1.25 X 20 (Replaces: W10094780) |
|
$ 14.10 | |||||
| 9 | W10721967 | Spring, Splutch (includes Items 10, 11, 12 & 13) (Replaces: W10006382) |
|
Immediately | $ 55.68 | ||||
| 10 | W10721967 | Slider, Splutch (includes Items 9, 11, 12 & 13) (Replaces: W10006352) |
|
Immediately | $ 55.68 | ||||
| 11 | W10721967 | Cam Ring, Splutch (includes Items 9, 10, 12 & 13) (Replaces: W10006353) |
|
Immediately | $ 55.68 | ||||
| 12 | W10721967 | Cam, Splutch (includes Items 9, 10, 11 & 13) (Replaces: W10006354) |
|
Immediately | $ 55.68 | ||||
| 13 | W10759993 | Pulley (Replaces: W10246453) |
|
Immediately | $ 39.20 | ||||
| 14 | W10759923 | Nut, Pulley (Replaces: W10163336) |
|
$ 7.64 | |||||
| 15 | WPW10006388 | Belt, Drive (Replaces: W10006388) |
|
$ 88.94 | |||||
| 16 | WPW10006355 | Actuator, Shift (Replaces: W10006355) |
|
Immediately | $ 78.13 | ||||
| 17 | W11596033 | Screw, 6-32 X 1.00 (Replaces: 9741052) |
|
$ 13.55 | |||||
| 18 | W10804672 | Capacitor, Motor Run (Replaces: W10006418) |
|
$ 137.03 | |||||
| 19 | WP273556 | Screw, 10-16 X 5/8 (Replaces: 357640) |
|
Immediately | $ 7.82 | ||||
| 20 | WPW10427633 | Shield, Pulley Cover (Replaces: W10006383) |
|
Immediately | $ 47.41 | ||||
| 21 | W10238318 | Counterweight |
|
$ 30.66 | |||||
| 22 | WPW10238319 | Screw, 8-18 X 1.00 (Replaces: W10238319) |
|
$ 7.49 |
