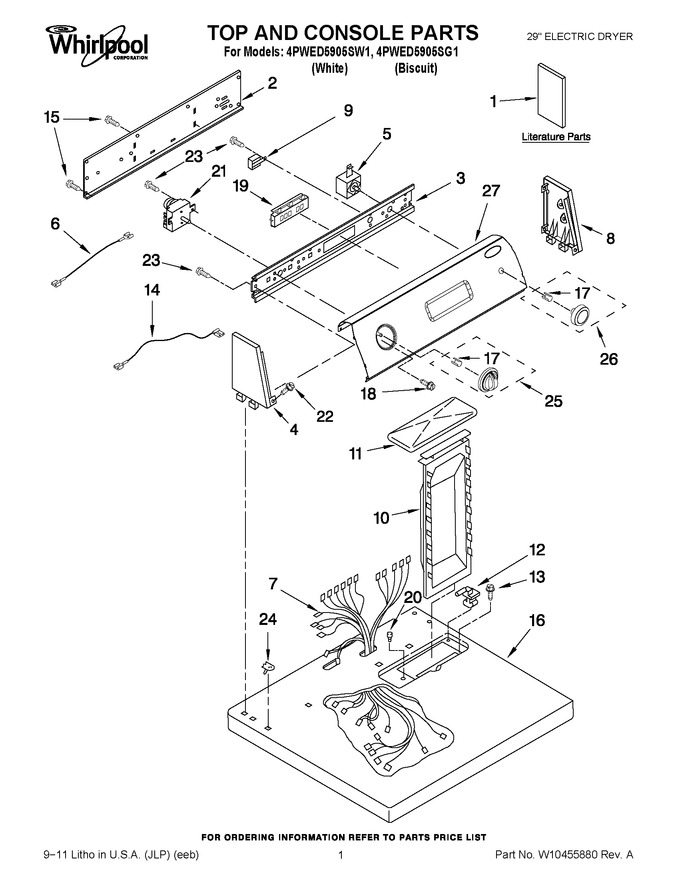

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10097088 | Guide, Use & Care |
|
- | |||||
| 1 | W10113035 | Guide, Use & Care (export) |
|
- | |||||
| 1 | W10396182 | Wiring Diagram |
|
- | |||||
| 1 | W10113034 | Installation Instruction (export) |
|
- | |||||
| 1 | W10113036 | Dryer Cycle Sheet |
|
- | |||||
| 2 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 135.31 | |||||
| 3 | 8271426 | Bracket, Control |
|
- | |||||
| 4 | 8271368 | Cap, End (l.h.) (biscuit) |
|
- | |||||
| 4 | 8271365 | Cap, End (l.h.) (white) |
|
- | |||||
| 5 | WPW10112633 | Switch, Push-to-start (Replaces: W10112633) |
|
$ 135.29 | |||||
| 6 | 3401666 | Wire Jumper (yellow/black) |
|
- | |||||
| 6 | 3401684 | Wire, Jumper (black) |
|
$ 34.57 | |||||
| 7 | W10386308 | Harness, Wiring |
|
- | |||||
| 8 | 8271362 | Cap, End (r.h.) (biscuit) |
|
- | |||||
| 8 | 8271359 | Cap, End (r.h.) (white) |
|
- | |||||
| 9 | 3952439 | Buzzer, Mini |
|
- | |||||
| 10 | WP349639 | Handle & Lint Screen Assembly (Replaces: 349639) |
|
Immediately | $ 37.21 | ||||
| 11 | 8283378 | Cover, Lint Screen (white) |
|
$ 44.80 | |||||
| 11 | 8283380 | Cover, Lint Screen (biscuit) |
|
- | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 3978606) |
|
$ 8.11 | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 3978605) |
|
$ 8.11 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | 3393812 | Wire, Jumper (light Blue) |
|
- | |||||
| 14 | 3401667 | Wire, Jumper (white) |
|
- | |||||
| 14 | 3393811 | Wire, Jumper (violet) |
|
- | |||||
| 15 | WP693995 | Screw, 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 16 | 8271390 | Top (white) |
|
- | |||||
| 16 | 8271392 | Top (biscuit) |
|
- | |||||
| 17 | WP8536939 | Knob, Spring Clip (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 18 | 3400859 | Screw, Ground (Replaces: 8533951) |
|
$ 13.88 | |||||
| 19 | W10110501 | Switch, Clean Touch (biscuit) |
|
- | |||||
| 19 | W10168177 | Switch, Clean Touch (white) |
|
- | |||||
| 20 | 297535 | Bumper, Lint Lid |
|
- | |||||
| 21 | WPW10111123 | Timer Assembly (50 Hz.) (Replaces: W10111123) |
|
$ 321.73 | |||||
| 22 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 9.29 | |||||
| 23 | WP90767 | Screw, 8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 24 | WP357213 | Nut,push-in (Replaces: 357213) |
|
$ 7.76 | |||||
| 25 | W10034760 | Timer Knob Assembly (biscuit) |
|
- | |||||
| 25 | W10034750 | Timer Knob Assembly (white) |
|
$ 28.27 | |||||
| 26 | WPW10034790 | Knob, Push-to-start (white) (Replaces: W10034790) |
|
$ 57.81 | |||||
| 26 | W10034800 | Knob, Push-to-start (biscuit) |
|
- | |||||
| 27 | W10115458 | Panel, Control (white) |
|
- | |||||
| 27 | W10095980 | Panel, Control (biscuit) |
|
- |
