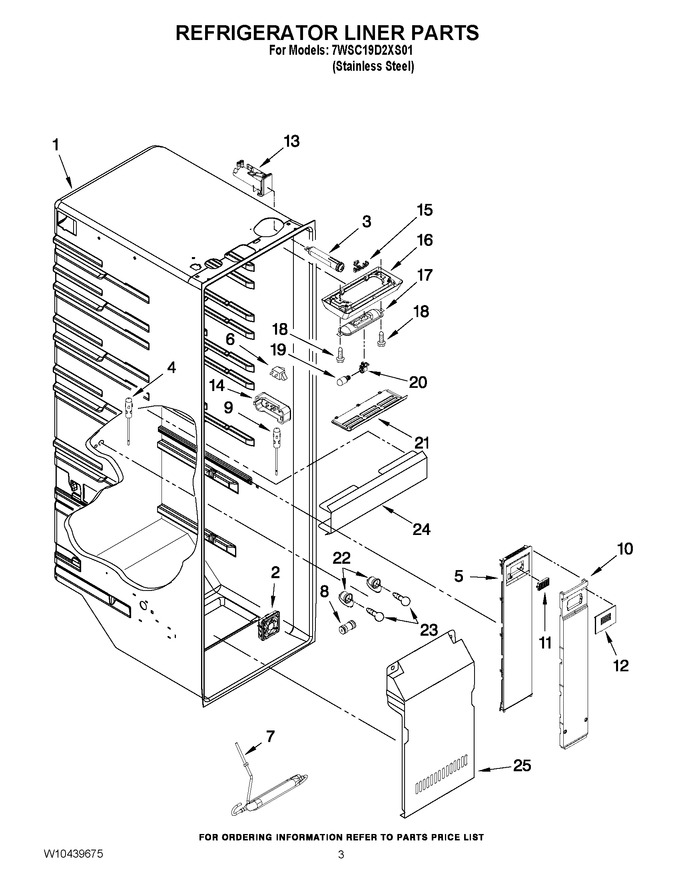

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WPW10439624 | Fan Assy - Evap (Replaces: W10260460) |
|
Immediately | $ 338.17 | ||||
| 3 | EDR1RXD1B | Water Filter (Replaces: W10295370) |
|
Immediately | $ 49.99 | ||||
| 4 | W10316760 | Thermistor, Evap Fan (Replaces: W10323459) |
|
Immediately | $ 72.91 | ||||
| 5 | W10223350 | Cover, Air Tower |
|
- | |||||
| 6 | W11384469 | Switch Rocker Arm (Replaces: C3680314) |
|
Immediately | $ 39.09 | ||||
| 7 | W11204869 | Reservoir (Replaces: W10279843) |
|
$ 167.67 | |||||
| 8 | WP2300868 | Connector (Replaces: W10271541) |
|
Immediately | $ 29.05 | ||||
| 9 | W11724692 | Thermistor (Replaces: W10280385) |
|
Immediately | $ 33.60 | ||||
| 10 | W10156707 | Tower, Air |
|
$ 95.50 | |||||
| 11 | W10311524 | Air Filter |
|
Immediately | $ 14.34 | ||||
| 12 | W10317304 | Air Filter Cover |
|
- | |||||
| 13 | WPW10238123 | Housing, Water Filter (Replaces: W10238123) |
|
$ 239.81 | |||||
| 14 | WPW10425252 | Cover, Thermistor (Replaces: W10356630) |
|
Immediately | $ 88.38 | ||||
| 15 | W10253307 | Wire Assy, Top Light |
|
- | |||||
| 16 | W10280178 | Trim, Light |
|
- | |||||
| 17 | W10289520 | Shield, Heat |
|
- | |||||
| 18 | WP3400906 | Screw (Replaces: W10141632) |
|
$ 9.05 | |||||
| 19 | WPA3073101 | Light Bulb (Replaces: 2326255) |
|
Immediately | $ 12.72 | ||||
| 20 | WPW10191429 | Socket, Light (Replaces: W10191429) |
|
$ 8.80 | |||||
| 21 | W10280420 | Lens, Top Light |
|
$ 107.14 | |||||
| 22 | W11447232 | Socket, Light (Replaces: W10352518) |
|
Immediately | $ 13.87 | ||||
| 23 | W11679940 | Light Bulb (Replaces: W10311505) |
|
Immediately | $ 11.30 | ||||
| 24 | W10328013 | Lens, Light |
|
- | |||||
| 25 | W10859809 | Cover, Evap (Replaces: W10251454) |
|
$ 263.42 |
