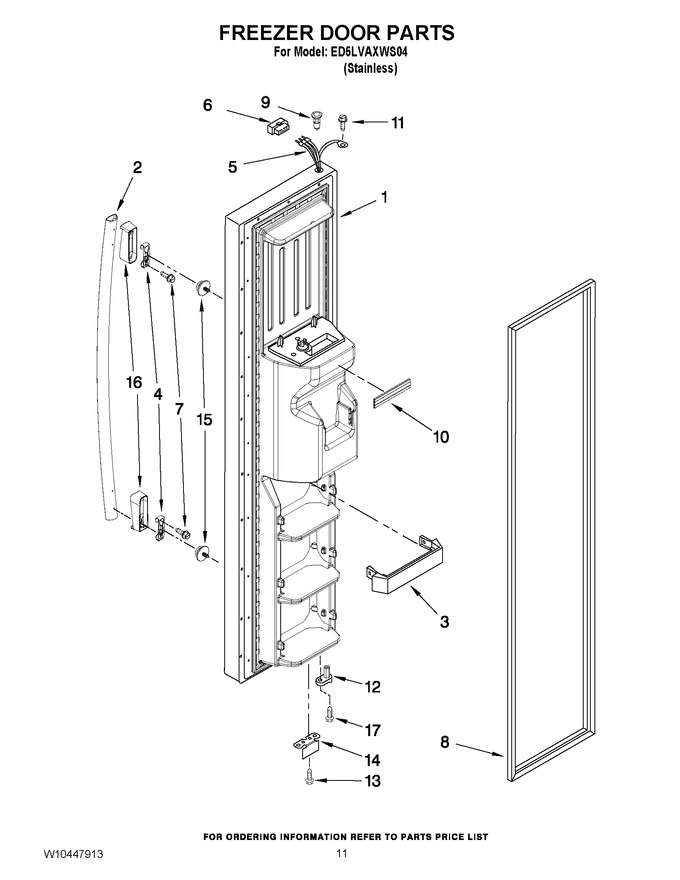

06 - Freezer Door Parts


07 - Dispenser Front Parts


08 - Air Flow Parts


09 - Control Parts


10 - Unit Parts


11 - Icemaker Parts


12 - Motor And Ice Container Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10365701		Freezer Door (includes No.8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
2	WPW10257118K		Handle   (Replaces: W10257118)				$ 177.29
3	WP2309718		Trivet (3)   (Replaces: 2309718)				$ 55.34
4	WP2255411		Clip   (Replaces: 2255411)				$ 32.90
5	2198619		Dispenser Harness		Appelez-nous	-
6	WP2154473		Connector   (Replaces: 2154473)				$ 22.35
7	W10267047		Screw (4)   (Replaces: W10201588)				$ 12.12
8	2159082		Door Gasket, Magnetic   (Replaces: 2309533)				$ 299.24
9	WP2182181		Thimble Top   (Replaces: 2182181)				$ 7.34
10	WPW10307490		Trim, Door Shelf   (Replaces: W10307494)			Immediately	$ 21.84
11	WP489128		Screw   (Replaces: 488500)				$ 10.26
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.80
13	WP489483		Screw   (Replaces: 489420)				$ 10.27
14	W10185567		Bracket, Door Stop		Appelez-nous	-
15	WPW10288153		Screw   (Replaces: W10129563)			Immediately	$ 8.69
16	W10127772		Endcap, Handle				$ 49.75
17	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
