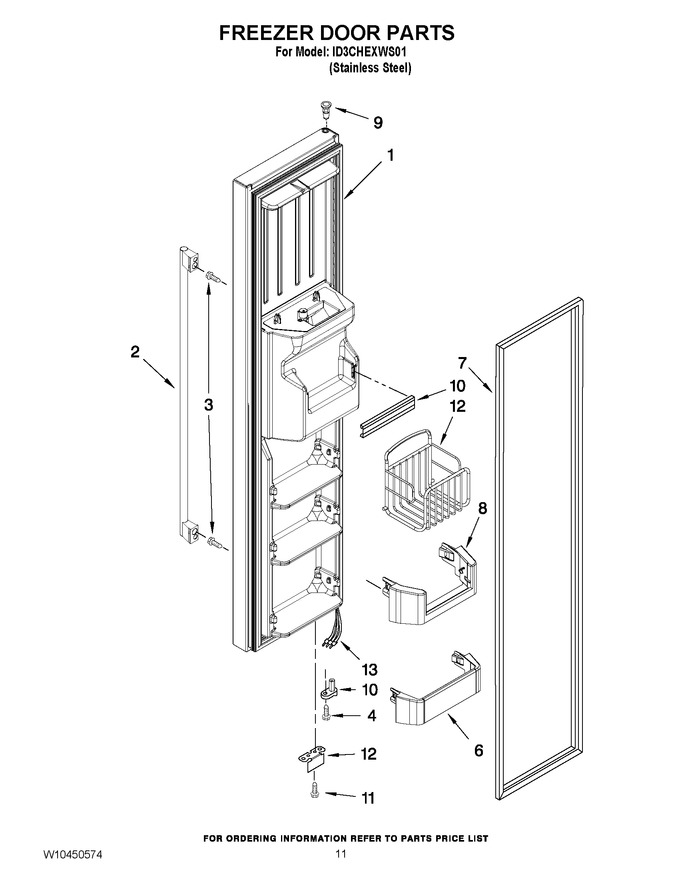

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10257876 | Freezer Door (includes No.8 And Dispenser Front Parts) (stainless Steel) |
|
- | |||||
| 2 | WPW10202821 | Handle Assy (stainless) (Replaces: W10202821) |
|
$ 304.55 | |||||
| 3 | WPW10170540 | Screw, Handle (Replaces: W10170540) |
|
Immediately | $ 10.13 | ||||
| 4 | WP3400012 | Screw (Replaces: W10142285) |
|
$ 8.26 | |||||
| 6 | WP2171157 | Shelf Bin (3) (Replaces: 2171157) |
|
$ 63.70 | |||||
| 7 | 2223912 | Door Gasket, Magnetic (black) |
|
- | |||||
| 8 | WPW10307490 | Trim, Door Shelf (Replaces: W10307494) |
|
Immediately | $ 24.27 | ||||
| 9 | WP2182181 | Thimble-top (Replaces: 2308091) |
|
$ 8.15 | |||||
| 10 | W10132977 | Door Closer, Upper Cam |
|
$ 12.16 | |||||
| 11 | WPW10142233 | Screw (Replaces: W10142233) |
|
$ 8.93 | |||||
| 12 | W10215323 | Bracket, Door Stop (black) |
|
- | |||||
| 13 | W10193334 | Wire Assy, Door |
|
- |
