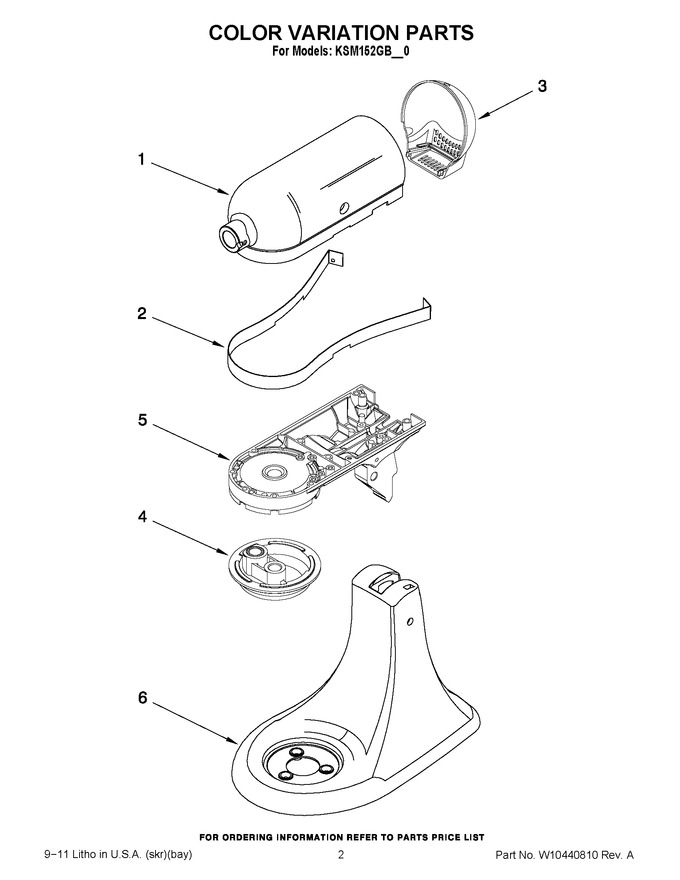

01 - Color Variation Parts
02 - Case, Gearing And Planetary Unit
03 - Motor And Control Parts
04 - Base And Pedestal Unit
05 - Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9704752 | Motor Housing (satin Copper) |
|
- | |||||
| 2 | 9707540 | Trim Band (black) |
|
- | |||||
| 3 | W10291365 | End Cover (satin Copper) |
|
- | |||||
| 4 | 9704755 | Planetary-satin Copper |
|
$ 73.89 | |||||
| 5 | 9704749 | Lower Gearcase-satin Copper |
|
- | |||||
| 6 | 9704746 | Pedestal W/feet (satin Copper) |
|
- |
