Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10395348 Energy Guide Appelez-nous -
1 W10195615 Tech Sheet/english Appelez-nous -
1 W10321621 Instructions, Installation Appelez-nous -
1 W10195616 Tech Sheet/french Appelez-nous -
1 W10300928 Guide, Use & Care (english/french) Appelez-nous -
1 W10300596 Guide, Use & Care (spanish) Appelez-nous -
2 W11806565 Arm, Hinge (left)   (Replaces: 8534854) In-Stock Immediately $ 142.39

2 W11806608 Arm, Hinge (right)   (Replaces: 8534853) In-Stock Immediately $ 142.24

3 W10850371 Vapor Barrier Assembly   (Replaces: W10321449) In-Stock Immediately $ 32.88

4 W10831329 Insulation, Access Panel   (Replaces: W10385107) In-Stock Immediately $ 43.30

5 WPW10526115 Access Panel (white)   (Replaces: W10368716) Special Order $ 175.17

5 WPW10526114 Access Panel (black)   (Replaces: W10368715) In-Stock Immediately $ 149.53

6 W10195872 Panel, Full Front (includes Items 9 & 15) (white) Special Order $ 171.59

6 WPW10195870 Panel, Full Front (includes Items 9 & 15) (stainless)   (Replaces: W10195870) Special Order $ 397.17

6 WPW10195873 Panel, Full Front (includes Items 9 & 15) (black)   (Replaces: W10195873) Special Order $ 363.36

7 WPW10503548 Fastener (black)   (Replaces: W10331789) In-Stock Immediately $ 30.39

7 WPW10503549 Fastener (white)   (Replaces: W10331793) In-Stock Immediately $ 7.77

8 W11126003 Insulation Front Panel   (Replaces: W10315897) In-Stock Immediately $ 65.25

9 WPW10243391 Nameplate (stainless)   (Replaces: W10243391) Special Order $ 58.31

9 WPW10243393 Nameplate (white)   (Replaces: W10243393) Special Order $ 69.98

9 WPW10243392 Nameplate (black)   (Replaces: W10243392) Special Order $ 73.70

10 WPW10307614 Screw   (Replaces: W10307614) In-Stock Immediately $ 7.55

11 W10826179 Screw   (Replaces: W10316572) In-Stock Immediately $ 7.55

12 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

13 W11116870 Bracket, Panel Control   (Replaces: W10194911) Special Order $ 89.95

14 WP3400071 Screw   (Replaces: 3400071) Special Order $ 8.26

15 W10319007 Light, Pipe Special Order $ 72.00

16 W11157086 Stud   (Replaces: W10195726) In-Stock Immediately $ 8.87

17 W10195735 Handle, Assembly (black) Appelez-nous -
17 W10195736A Handle, Assembly (white)   (Replaces: W10195736) Special Order $ 63.06

17 W10195738 Handle, Assembly (stainless) Appelez-nous -
18 W10831329 Insulation, Barrier Pad   (Replaces: W10350437) In-Stock Immediately $ 43.30


    View Diagram in Separate Window     Print Icon   Print Part List

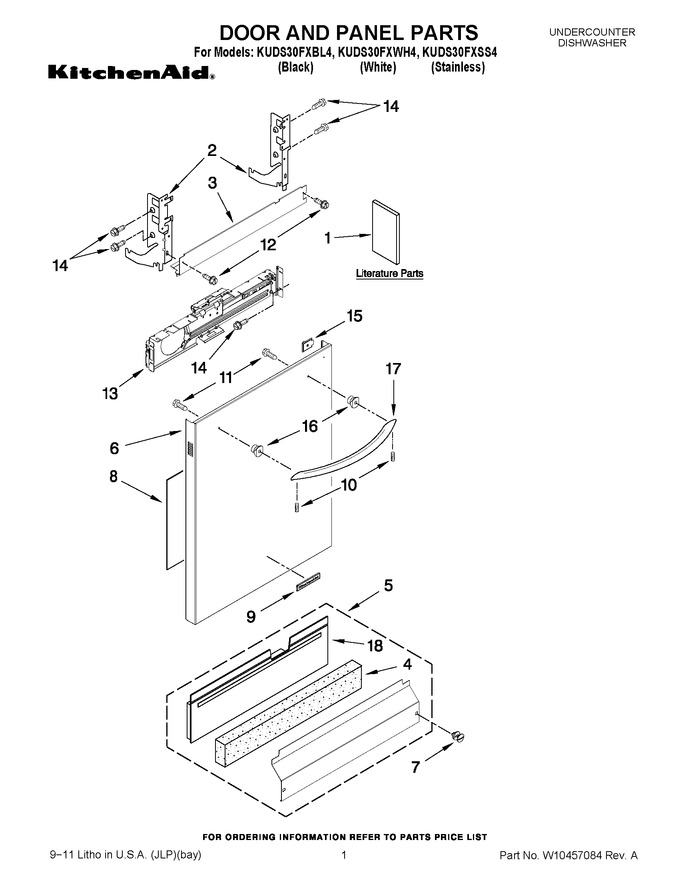

Diagram for KUDS30FXSS4
