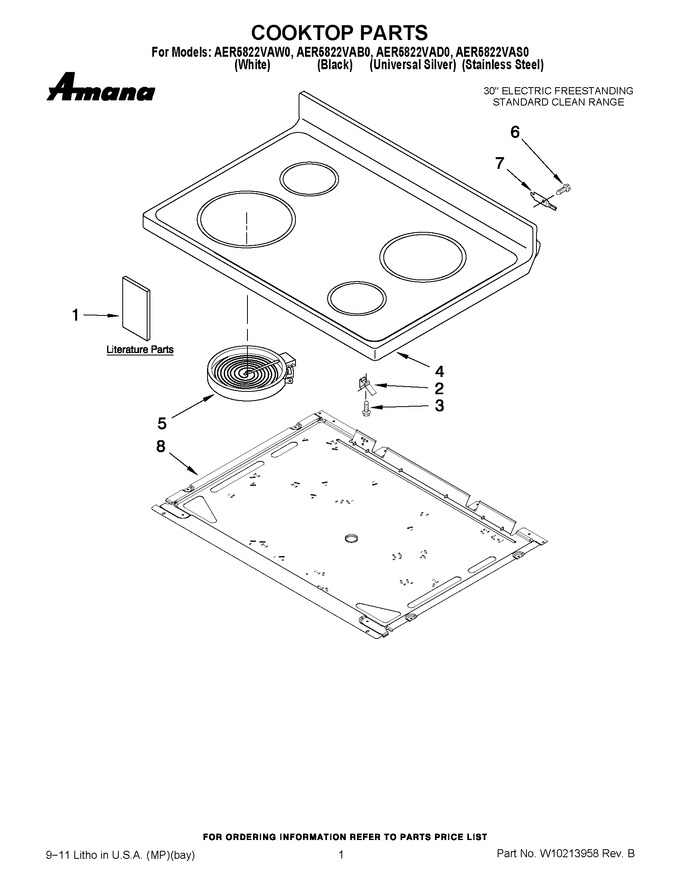

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10196158 | Instructions Installations |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips |
|
- | |||||
| 1 | 9757142 | Template, Anti-tip (english/spanish) |
|
- | |||||
| 1 | 9757143 | Template, Anti-tip (english/french) |
|
- | |||||
| 1 | W10196163 | Owners Manual |
|
- | |||||
| 1 | W10198624 | Tech Sheet |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10162042) |
|
Immediately | $ 10.40 | ||||
| 3 | WP3196170 | Screw (Replaces: 3196170) |
|
$ 7.19 | |||||
| 4 | W10219141 | Cooktop (white) (Replaces: W10172293) |
|
$ 481.72 | |||||
| 4 | W10245805 | Cooktop (black) (Replaces: W10172294) |
|
$ 527.46 | |||||
| 5 | W11171119 | Element, Surface (lr/rf - 1200 W) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 5 | W11047722 | Element, Surface (lf/rr - 2500 W) (Replaces: 8273992) |
|
Immediately | $ 132.46 | ||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 7 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 12.55 | ||||
| 8 | W10170526 | Pan, Radiant Elem. |
|
$ 257.69 |
