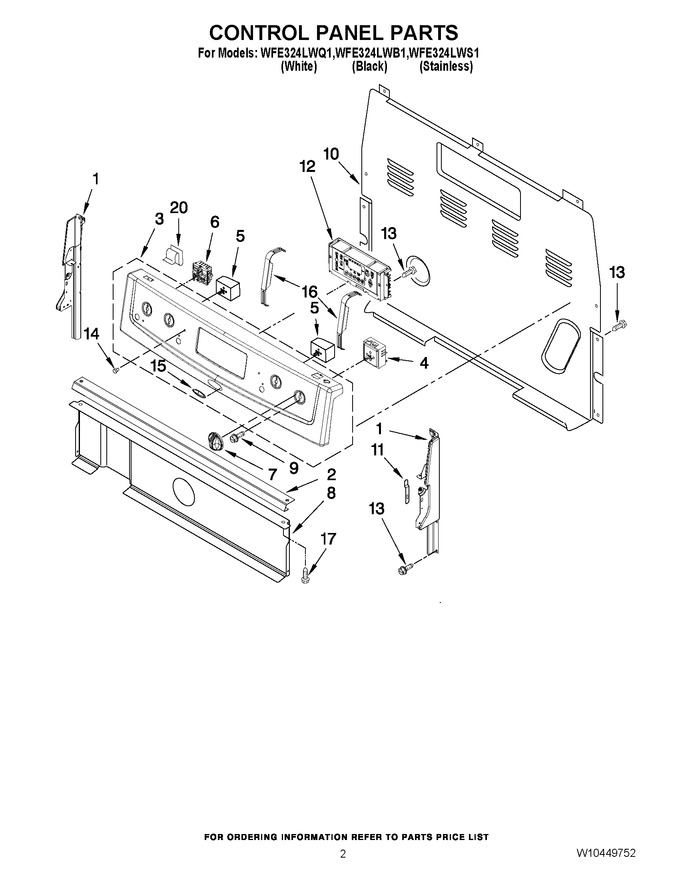

02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer And Rack Parts


05 - Door Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219665		Endcap (black Rh)   (Replaces: W10184438)				$ 45.17
1	W11219365		Endcap (white Lh)   (Replaces: W10184433)				$ 42.45
1	W11219370		Endcap (white Rh)   (Replaces: W10184434)				$ 60.83
1	W11219664		Endcap (black Lh)   (Replaces: W10184437)				$ 153.83
2	W10525121		Bracket, Console   (Replaces: W10182322)				$ 98.85
3	W10267396		Console (stainless)		Appelez-nous	-
3	W10267403		Console (black)		Appelez-nous	-
3	W10267402		Console (white)		Appelez-nous	-
4	5500-287		Switch, Infinite (rf - Dual)   (Replaces: 3148953)			Immediately	$ 52.39
5	5500-287		Switch, Infinite (lr, Rr)   (Replaces: 3148951)			Immediately	$ 52.39
6	WPW10434452		Switch, Infinite (lf)   (Replaces: W10434452)			Immediately	$ 140.84
7	WP9761964		Knob, Infinite (black)   (Replaces: 9761964)			Immediately	$ 22.30
7	WP9761962		Knob, Infinite (white)   (Replaces: 9761962)			Immediately	$ 20.65
8	W10134247		Shield, Heat			Immediately	$ 358.82
9	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
10	WP8272473		Cover, Rear   (Replaces: 8272473)				$ 219.04
11	3196200		Clip, Spring				$ 10.45
12	W10273385		Control, Range (black)		Appelez-nous	-
12	W10273386		Control, Range (white)		Appelez-nous	-
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
14	WP3196068		Lens, Light   (Replaces: 3196068)			Immediately	$ 6.26
15	W10209617		Nameplate				$ 35.30
16	9762078		Brkt, Mntg Eoc				$ 38.13
17	WP3400832		Screw (black)   (Replaces: 3196168)			Immediately	$ 8.18
17	3196166		Screw (white)				$ 7.36
20	WP8273564		Clip, Rear Cover   (Replaces: 8273564)				$ 12.66
