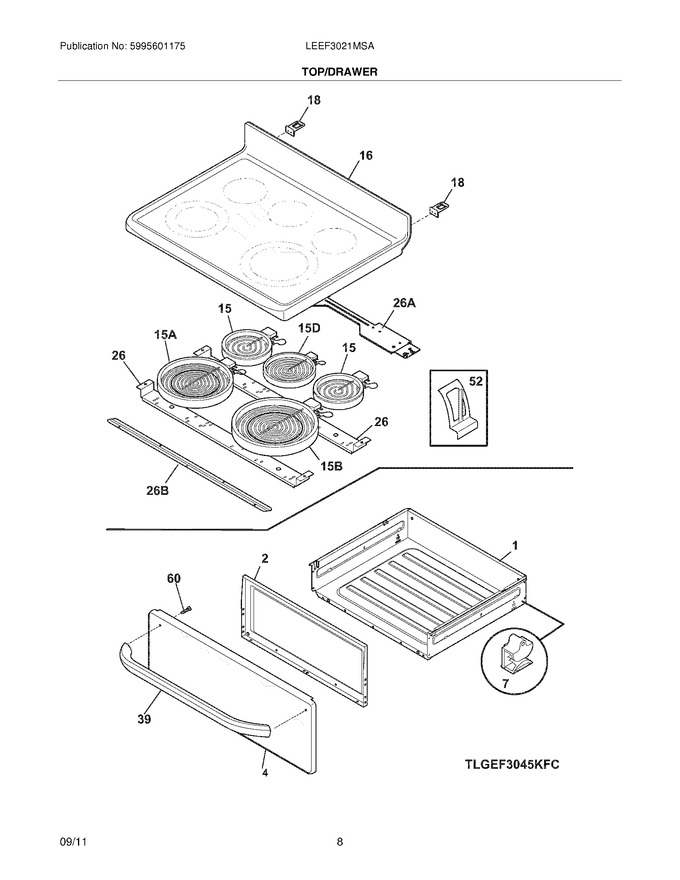

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer,utility   (Replaces: 316408703)			Immediately	$ 122.90
2	5304527989		Liner,drawer   (Replaces: 316403300)				$ 32.03
4	316581604		Drawer Panel,assy ,stainless ,w/ Overlay				$ 126.84
7	316407402		Glide,drawer ,rear   (Replaces: 316407400)			Immediately	$ 10.95
16	316282928		Maintop Assembly,glass/smoothtop ,black				$ 290.27
18	316580800		Bracket-hinge,main Top			Immediately	$ 10.95
26	5304500986		Channel,element Support ,(2)   (Replaces: 316427603)				$ 46.31
39	316558201		Handle,door ,stainless   (Replaces: 316558200)				$ 193.59
52	316461700		Clip,element Mtg				$ 13.39
60	5303288572		Screw-handle Mtg		Appelez-nous	-
26A	316498200		Bracket-support,chassis ,aluminum				$ 58.14
26B	316214202		Bracket,chassis Support ,front				$ 25.41
F15	318178110		Element,surface ,6`` ,1200 ,(2) ,radiant			Immediately	$ 136.51
F15A	316555800		Element,dual ,9``/6`` ,surface ,1300w/1200w,(2) ,radiant			Immediately	$ 175.75
F15B	316282100		Element,dual ,9/12`` ,surface ,1700/2700w,dual Radiant			Immediately	$ 276.97
F15D	140273621015		Element,surface ,warmer ,100 W   (Replaces: 318198832)				$ 39.74
FNI	316580413		Harness,wiring ,surface Units				$ 161.70
NI	316468100		Cleaner,smoothtop ,w/sponge				$ 4.88
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 30.55
NI	5308014215		Screw`6-20 X 0.312				$ 2.53
