01 - Cooktop Parts


02 - Drawer And Rack Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Door Parts


06 - Optional Parts (not Included)

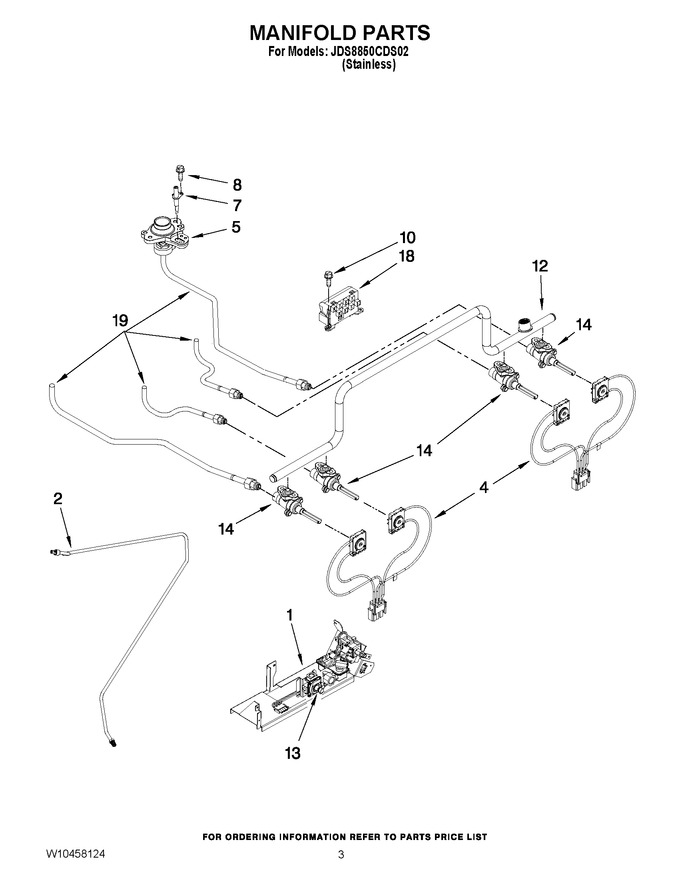

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4005F807-51		Cover, Burner Valve		Appelez-nous	-
2	7506P489-60		Tubing, Gas Supply				$ 35.75
4	WP74011648		Switch, Reignition Includes Switches (rf/rr)   (Replaces: 7450P004-60)			Immediately	$ 232.28
4	WP74011647		Switch, Reignition Includes Switches (lf/lr)   (Replaces: 7450P003-60)				$ 232.27
5	WP7527P004-60		Orifice, Holder (rf 16k)   (Replaces: 7527P004-60)				$ 85.05
5	WP7527P061-60		Orifice, Holder (lf 12k)   (Replaces: 7527P061-60)				$ 113.03
5	WP7527P002-60		Orifice, Holder (rr/lf 9.2k)   (Replaces: 7527P002-60)				$ 85.05
5	74009553		Orifice, Holder (lr 5k)   (Replaces: 7527P042-60)				$ 87.81
7	WP74009336		Ignitor   (Replaces: 7432P121-60)			Immediately	$ 27.00
8	WP8273062		Screw, Ignitor   (Replaces: 7101P606-60)			Immediately	$ 7.91
10	WP4159193		Screw   (Replaces: 7101P282-60)				$ 5.07
12	7513P473-60		Pipe, Manifold				$ 360.29
13	7510P101-60		Valve, Regulator				$ 151.00
14	7502P470-60		Valve, Top Burner (lr 5k)		Appelez-nous	-
14	7502P493-60		Valve, Top Burner (lf (dual))				$ 152.67
14	7502P548-60		Valve, Top Burner (rf 16k)		Appelez-nous	-
14	7502P471-60		Valve, Top Burner (rr 9.2k)		Appelez-nous	-
18	WPW10475147		Spark Module   (Replaces: 7431P038-60)			Immediately	$ 238.24
19	7506P445-60		Tube, Burner (rf)				$ 8.76
19	7506P448-60		Tube, Burner (lr)				$ 83.70
19	7506P447-60		Tube, Burner (rr)				$ 10.22
19	7506P469-60		Tube, Burner (tubing, Inner Dual)				$ 8.36
19	7506P470-60		Tube, Burner (tubing, Outer Dual)				$ 8.84
NI	W10258122		Kit, Lp Conv.				$ 94.69

    View Diagram in Separate Window       Print Part List
