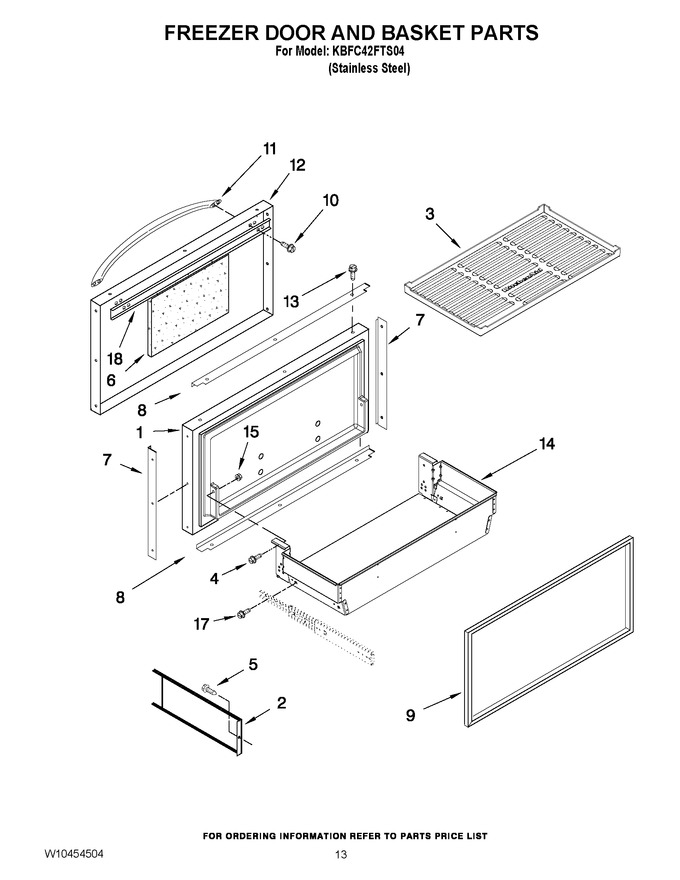

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10258747		Freezer Door (includes Item 9)		Appelez-nous	-
2	2317101		Divider, Basket		Appelez-nous	-
3	W10665413		Mat, Basket   (Replaces: 2314024)				$ 283.65
4	W10135775		Screw, 5/16 X 3/4				$ 14.93
5	WP488234		Screw, 8/32 X 1/4   (Replaces: W10135792)				$ 7.08
6	2309219		Filler, Foam				$ 277.62
7	W10340330		Spacer, Door Edge - Side		Appelez-nous	-
8	2309221		Spacer, Door Edge Top & Bottom		Appelez-nous	-
9	WPW10192907		Door Gasket, Magnetic   (Replaces: W10192907)			Immediately	$ 363.09
10	WP308544		Screw, 10-24 X 1/2   (Replaces: 308544)			Immediately	$ 8.30
11	WP2316868		Handle, Door   (Replaces: 2316868)			Immediately	$ 281.43
12	W10194432		Skin, Door		Appelez-nous	-
13	WP8281250		Screw 8-15 X 1/2   (Replaces: 8281250)				$ 11.42
14	W10258183		Basket Assembly, Freezer		Appelez-nous	-
15	WP2207454		Nut, Hex   (Replaces: 2207454)				$ 11.38
17	W10109030		Screw 10-24 X Π(basket To Slide)				$ 15.35
18	W10127710		Plate, Door-handle			Immediately	$ 25.94
