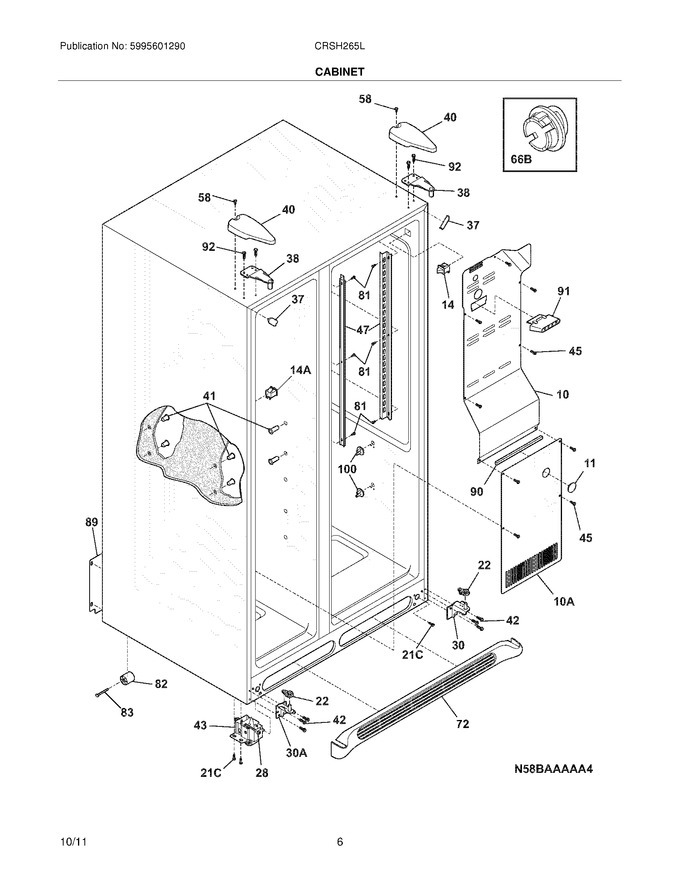

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	240435912		Cover-air Duct				$ 136.92
11	5303208309		Plug-hole, Factory Test				$ 50.56
22	241856501		Plate-door Closer,black   (Replaces: 241856502)				$ 25.25
28	5304499445		Bolt-roller Adj,hex Washer Head ,1/4-20 X 4.020,(2) ,special   (Replaces: 240335502)			Immediately	$ 34.81
30	242034601		Bracket-lower Hinge				$ 65.68
37	240337610		Trim-cabinet Corner,black ,(2)				$ 5.63
38	240327207		Bracket-upper Hinge			Immediately	$ 63.89
40	240327007		Cover-upper Hinge,black			Immediately	$ 62.87
41	241550801		Grommet-shelf Mtg,1.40`` Long				$ 70.78
42	240578902		Screw,hex Head ,1/4-20 X 5/8			Immediately	$ 15.75
43	5304499445		Roller Assy,front ,(2)   (Replaces: 240335006)			Immediately	$ 34.81
45	241500303		Screw,hex Washer Head ,8-18ab X 1/2			Immediately	$ 5.06
47	218659500		Channel-shelf Mtg,side ,(2)				$ 121.38
58	218781101		Screw,pan Head ,8-18 X 0.625				$ 17.33
72	240324411		Grille/kickplate,black				$ 75.60
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 15.75
82	5304418225		Roller,compressor Base ,rear ,(2)				$ 57.30
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin			Immediately	$ 39.27
89	5304520905		Cover-access,w/label   (Replaces: 241733902)			Immediately	$ 82.25
90	218249808		Seal-coil Cover		Appelez-nous	-
91	240380101		Duct-ice Maker				$ 83.42
92	241710601		Screw,hex Washer Hd ,1/4 X 7/8 ,hinge Mtg				$ 14.96
100	241993101		Support-crisper Cvr			Immediately	$ 6.24
10A	241719711		Cover-evap Coil,lower				$ 117.55
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 15.75
30A	242034604		Bracket-lower Hinge   (Replaces: 242034602)				$ 59.27
66B	240374301		Diffuser-air				$ 77.26
F100	241993001		Support-crisper Cvr			Immediately	$ 21.37
F14	240505801		Switch-light/lamp				$ 74.03
F14A	241547902		Switch-light/lamp,frzr Door   (Replaces: 241547901)			Immediately	$ 25.83
F66B	240518802		Pin-push,push-in ,plastic				$ 18.11
NI	5303321321		Paint,touch-up,black			Immediately	$ 24.41
NI	240396801		Clamp,tube/wiring ,nylon ,black/natural				$ 21.26
NI	240494001		Plug,button ,cab Liner Holes   (Replaces: 240479601)			Immediately	$ 20.22
NI	241550701		Grommet-shelf Mtg,.96`` Long				$ 20.22
