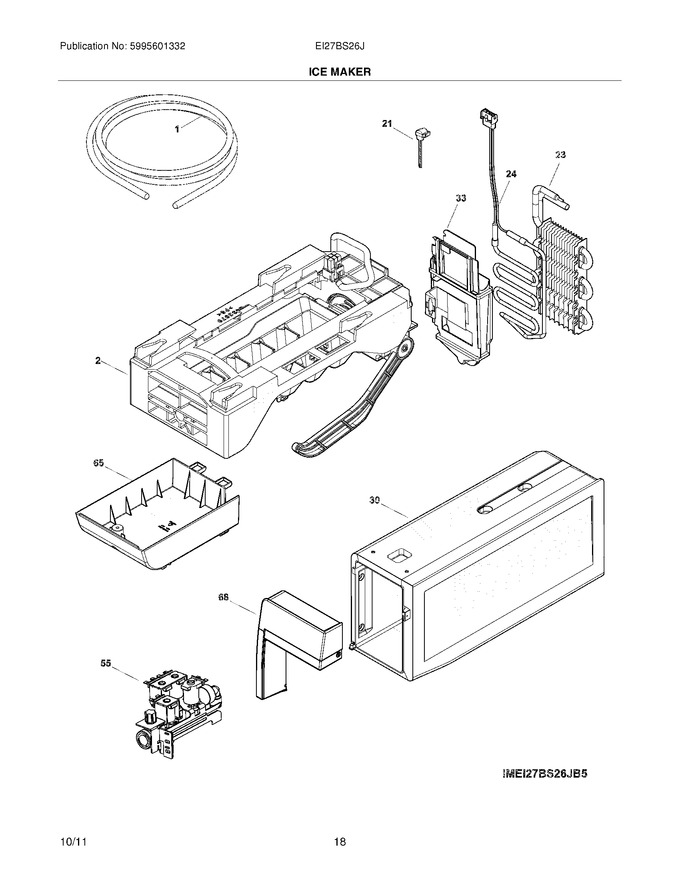

17 - Ice Maker


18 - Wiring Diagram


19 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976424		Tube-water,64.00`` ,yellow				$ 20.89
30	242093501		Cover,icmkr & Bucket   (Replaces: 242142201)				$ 187.43
33	242094401		Housing-evaporator				$ 6.39
65	242094301		Cover-wiring				$ 37.61
68	242095002		Cover,-front ,bucket Trim				$ 105.36
F2	243297613		Ice Maker,complete ,115 V   (Replaces: 243297603)			Immediately	$ 130.73
F21	5303918568		Thermostat-defrost,defrost ,icemaker Evap				$ 101.59
F23	5303918567		Evaporator Kit			Immediately	$ 343.98
F24	242094802		Heater-defrost   (Replaces: 242094801)			Immediately	$ 126.58
F55	242253002		Valve-water,4 Position ,115 V   (Replaces: 242102201)			Immediately	$ 271.94
NI	242095406		Gasket			Immediately	$ 20.19
NI	5303918784		Gasket   (Replaces: 242095407)			Immediately	$ 136.39
NI	5303918784		Gasket   (Replaces: 242124801)			Immediately	$ 136.39
NI	5303918784		Gasket   (Replaces: 242124802)			Immediately	$ 136.39
NI	5303918784		Gasket   (Replaces: 242146001)			Immediately	$ 136.39
NI	242095402		Gasket-evap Housing,.250x.250x3.300		Appelez-nous	-
NI	242095403		Gasket-evap Housing,.250x.250x7.750		Appelez-nous	-
NI	5303918784		Gasket-evap Housing,.250x.250x5.250   (Replaces: 242095404)			Immediately	$ 136.39
NI	242095405		Gasket-evap Housing,.250x.250x6.600		Appelez-nous	-
NI	242095408		Gasket-evap Housing		Appelez-nous	-
NI	242095425		Gasket-evap Housing   (Replaces: 242095409)				$ 11.46
NI	218709101		Screw,hex Head ,10-32 X 0.500				$ 7.09
NI	240363602		Screw-shoulder				$ 15.17
NI	241953902		Screw,no.8 - 18 X .380 ,3			Immediately	$ 19.01
NI	241806601		Connector-water,straight   (Replaces: 242103001)			Immediately	$ 78.40
NI	5303918484		Chute-ice   (Replaces: 242105401)				$ 33.86
NI	240396801		Clamp,tube/wiring ,nylon ,black/natural				$ 21.26
NI	241641502		Screw				$ 9.45
NI	240555002		Screw,hex Washer Head ,8-32t X 0.375   (Replaces: 241690701)			Immediately	$ 14.96
NI	242039701		Screw				$ 14.96
NI	241920106		Tube-water Inlet, Green   (Replaces: 241920103)			Immediately	$ 67.41
NI	218976423		Tube-water Inlet,56.00`` ,brown/tan				$ 17.92
NI	218976812		Tube-water Inlet,valve To I.m.		Appelez-nous	-
NI	241518001		Nut,1/2-20 ,nylon ,water Hose ,(2)				$ 23.86
NI	5303918571		Tube-water,ice Mold Fill ,black ,extension   (Replaces: 241844403)				$ 182.49
NI	241964704		Tube-water				$ 17.48
NI	241965901		Tube-water,formed ,64.86``				$ 33.71
NI	242041804		Tube-water Inlet,yellow ,inlet Valve ,to Icemaker		Appelez-nous	-
NI	241695906		Screw,10-16ab X 0.50				$ 21.26
