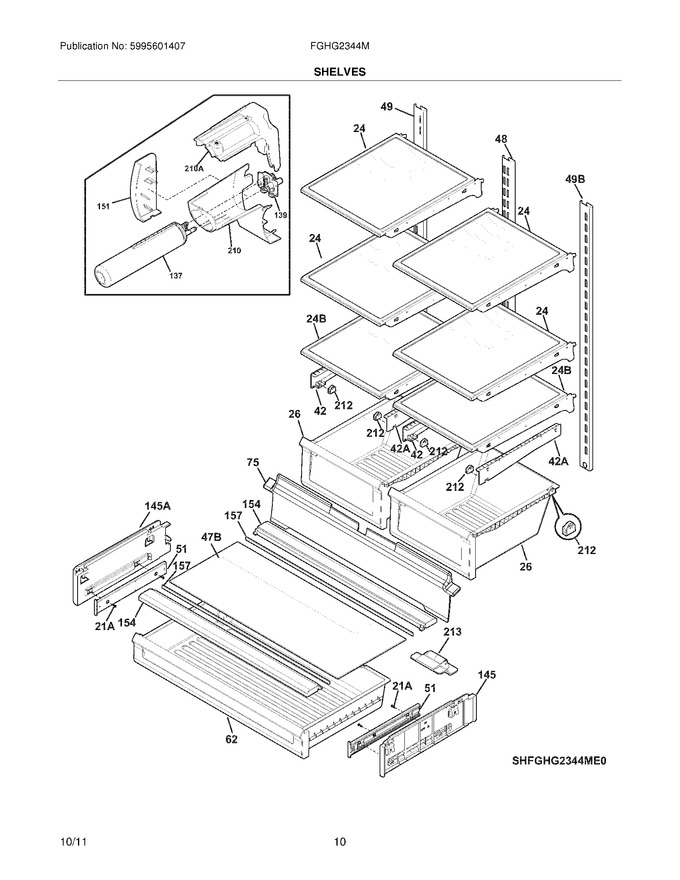

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
24	242068704		Shelf,sliding ,cantilever ,``spill-safe``				$ 191.94
26	241801803		Pan-crisper,(2)				$ 235.17
42	242079401		Support,crspr Pan Rolle			Immediately	$ 34.65
48	242122101		Channel-shelf Mtg,center				$ 88.99
49	242122202		Channel-shelf Mtg,side ,lh				$ 74.81
51	242120001		Slide-deli			Immediately	$ 184.28
62	242096815		Pan-deli   (Replaces: 242096803)				$ 188.50
75	242072702		Shield-light,refr				$ 115.25
137	ULTRAWF		Filter-water,carbon   (Replaces: 241791601)			Immediately	$ 116.23
139	242009604		Base-water Filter   (Replaces: 242009601)			Immediately	$ 36.82
145	242120101		Support,rail				$ 85.10
151	242069701		Cover-water Filter				$ 69.16
154	242082401		Support				$ 76.22
157	241872201		Beam-crisper Cover				$ 59.83
210	241983816		Housing-water Filtr   (Replaces: 241983805)			Immediately	$ 81.90
212	241801801		Roller Assembly,crisper Pan   (Replaces: 5304479194)				$ 205.01
213	242010901		Roller Assy,deli Pan				$ 55.13
21A	241953902		Screw,no.8 - 18 X .380 ,3			Immediately	$ 19.01
24B	242068706		Shelf,fixed ,spill Safe			Immediately	$ 235.94
42A	242079402		Support,crspr Pan Rolle			Immediately	$ 47.89
47B	242082302		Glass,deli Cover		Appelez-nous	-
49B	242122301		Channel-shelf Mtg,side ,rh				$ 86.63
F145	242120102		Support,rail				$ 80.33
F154	242015001		Screw,no.10 8-19 X 1/2			Immediately	$ 18.11
F210	241998303		Mount-water Filter   (Replaces: 241998302)				$ 16.01
NI	5304453707		Screw,no.8-18   (Replaces: 241953901)			Immediately	$ 17.69
NI	242110264		Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
