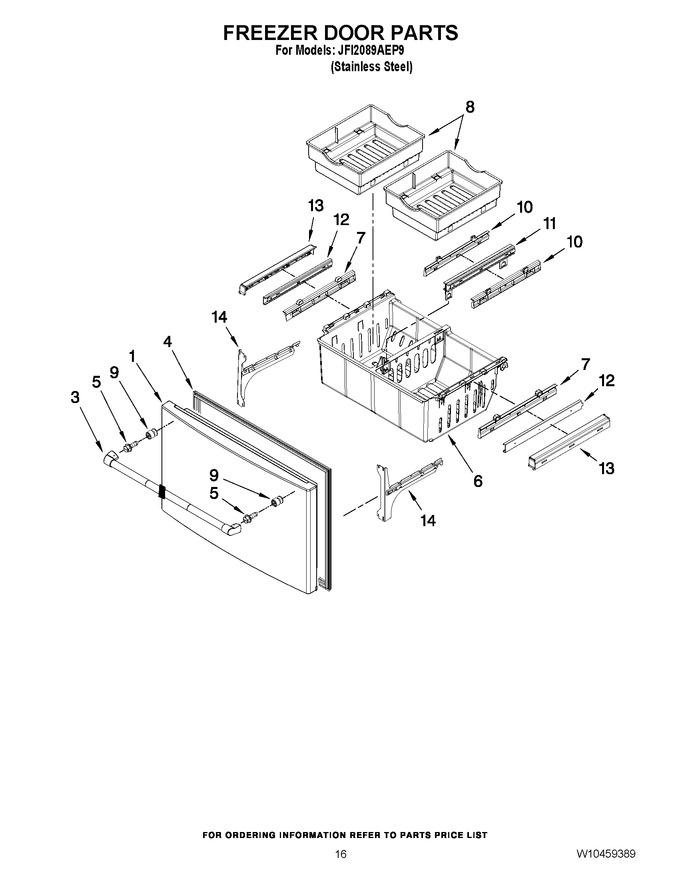

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12977842S		Freezer Door (stainless)		Appelez-nous	-
3	WPW10210625		Handle, Door (stainless (for Jfi2089aep4))   (Replaces: W10210625)				$ 318.61
4	WPW10436253		Gasket, Door (black)   (Replaces: W10164044)				$ 360.89
5	W10160454		Screw, Handle				$ 14.42
6	13002801SP		Bin, Lower		Appelez-nous	-
7	W10187469		Adapter, Bin (outer)   (Replaces: 13002603SP)				$ 92.28
8	W10184227		Bin, Upper   (Replaces: 13002402)			Immediately	$ 122.12
9	WP67006113		Mount, Handle   (Replaces: 13001201)			Immediately	$ 12.56
10	W10184223		Adapter, Bin (center)   (Replaces: 13002604SP)				$ 97.14
11	W10235358		Bracket/glide (assembly)				$ 318.09
12	WPW10235368		Glide, Upper   (Replaces: W10235368)				$ 335.82
13	W10826790		Retainer, Glide (left)   (Replaces: 13002701SP)				$ 62.48
13	W10826791		Retainer, Glide (right)   (Replaces: 13002702SP)				$ 62.48
14	WPW10330995		Bracket, Door Slide (right)   (Replaces: W10119295)			Immediately	$ 340.61
14	WPW10330994		Bracket, Door Slide (left)   (Replaces: W10119064)			Immediately	$ 169.02
