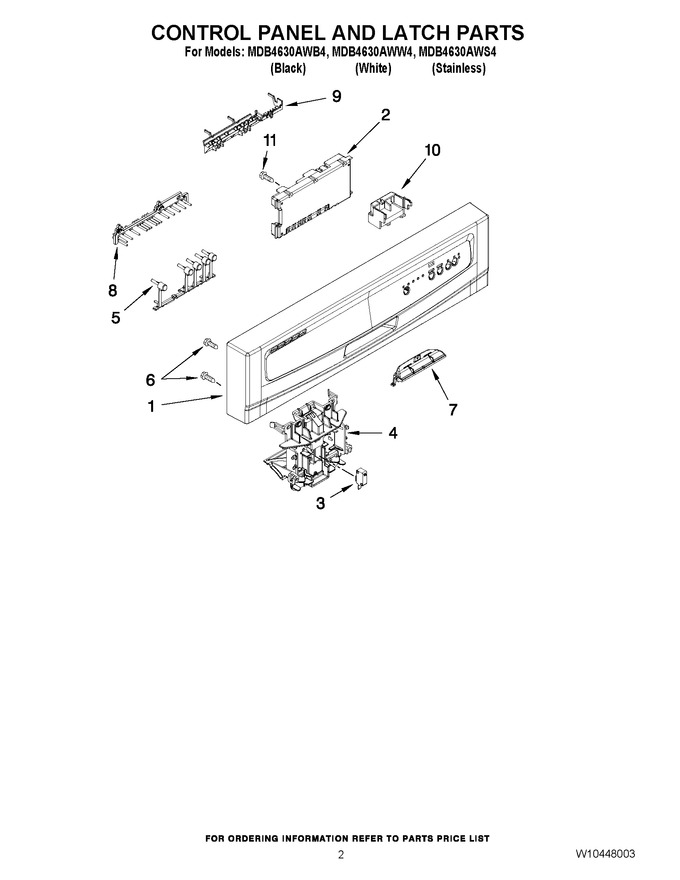

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10428179 | Console Asm. (includes Active Overlay & Insert) (black) |
|
- | |||||
| 1 | W10428178 | Console Asm. (includes Active Overlay & Insert) (white) |
|
- | |||||
| 2 | W10375800 | Control Electronic |
|
- | |||||
| 3 | WPW10274880 | Switch, Door (Replaces: W10274880) |
|
Immediately | $ 82.89 | ||||
| 4 | WPW10290198 | Latch Assembly (Replaces: W10290198) |
|
$ 112.00 | |||||
| 5 | W10274842 | Tree, Button |
|
$ 28.27 | |||||
| 6 | WP304231 | Screw (Replaces: 304231) |
|
Immediately | $ 8.14 | ||||
| 7 | W10240154 | Handle, Latch (black) |
|
$ 136.70 | |||||
| 7 | W10240155 | Handle, Latch (white) |
|
$ 136.55 | |||||
| 8 | W10274837 | Pipe, Light |
|
$ 21.08 | |||||
| 9 | WPW10372484 | Brace, Connector (Replaces: W10372484) |
|
$ 23.37 | |||||
| 10 | W10783730 | Box, Connector (Replaces: W10401190) |
|
$ 31.41 | |||||
| 11 | WPW10177098 | Screw (Replaces: W10177098) |
|
Immediately | $ 8.02 |
