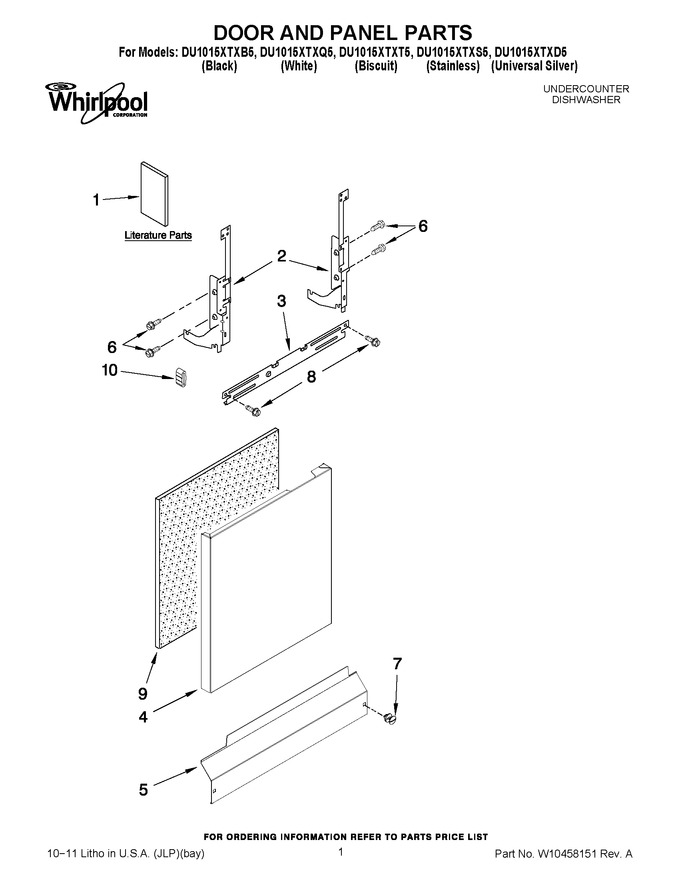

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10321866 | Energy Guide |
|
- | |||||
| 1 | W10321979 | Tech Sheet (english) |
|
- | |||||
| 1 | W10435039 | Instructions, Installation |
|
- | |||||
| 1 | W10321980 | Tech Sheet, French |
|
- | |||||
| 1 | W10275146 | Use & Care Guide (english/french) |
|
- | |||||
| 1 | W10275147 | Use & Care Guide (spanish) |
|
- | |||||
| 2 | W11613572 | Arm, Hinge (right) (Replaces: W10143373) |
|
Immediately | $ 83.93 | ||||
| 2 | W11806566 | Arm, Hinge (left) (Replaces: W10143374) |
|
Immediately | $ 71.77 | ||||
| 3 | 8268983 | Stiffener, Door |
|
$ 38.77 | |||||
| 4 | W10274891 | Panel Front (white) |
|
$ 133.14 | |||||
| 4 | WPW10274890 | Panel Front (black) (Replaces: W10274890) |
|
$ 358.95 | |||||
| 4 | W10274892 | Panel Front (biscuit) |
|
- | |||||
| 4 | W10274900 | Panel Front (stainless) |
|
$ 152.48 | |||||
| 4 | W10274893 | Panel Front (universal Silver) |
|
$ 242.48 | |||||
| 5 | W10441008 | Access Panel (biscuit) |
|
$ 146.51 | |||||
| 5 | W11763736 | Access Panel (black) (Replaces: W10441006) |
|
Immediately | $ 42.25 | ||||
| 5 | WPW10441007 | Access Panel (white) (Replaces: W10441007) |
|
$ 170.94 | |||||
| 6 | WPW10109200 | Screw (Replaces: 489470) |
|
Immediately | $ 8.80 | ||||
| 7 | WPW10503550 | Fastener (biscuit) (Replaces: W10331794) |
|
$ 29.00 | |||||
| 7 | WPW10503548 | Fastener (black) (Replaces: W10331789) |
|
Immediately | $ 30.39 | ||||
| 7 | WPW10503549 | Fastener (white) (Replaces: W10331793) |
|
Immediately | $ 7.77 | ||||
| 8 | WP681414 | Screw (Replaces: 681414) |
|
Immediately | $ 8.47 | ||||
| 9 | WPW10073520 | Insulation, Panel (Replaces: W10073520) |
|
$ 96.23 | |||||
| 10 | WP8268961 | Sleeve, Friction (Replaces: 8268961) |
|
Immediately | $ 5.93 |
