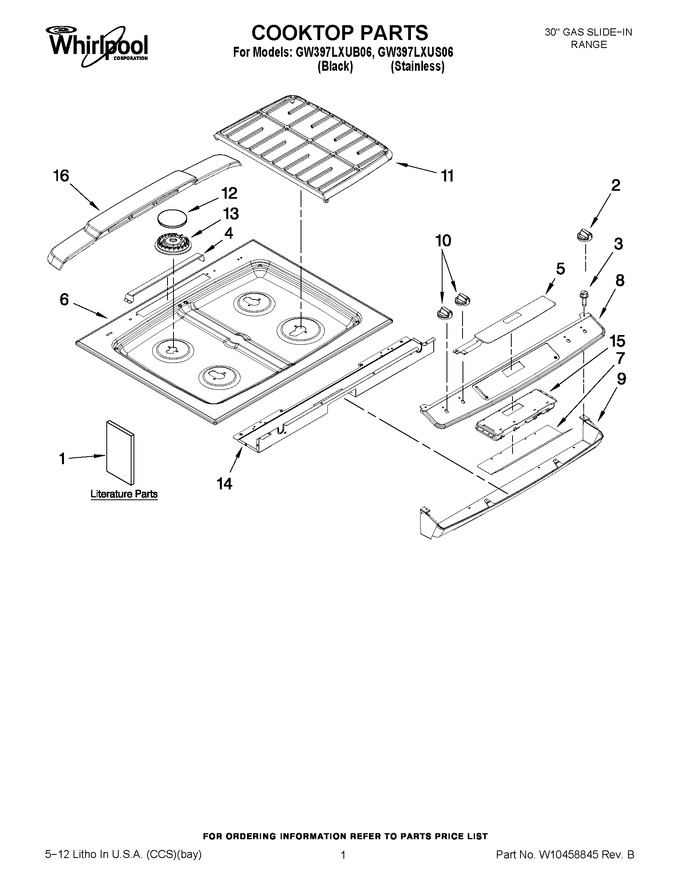

01 - Cooktop Parts
02 - Chassis Parts
03 - Manifold Parts
04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8113P679-60 | Owners Manual |
|
- | |||||
| 1 | 8113P681-60 | Installation Instructions |
|
- | |||||
| 1 | W10441603 | Diagram, Wiring (french) |
|
- | |||||
| 1 | W10394682 | Diagram, Wiring (english) |
|
- | |||||
| 2 | W10177201 | Knob, (accusimmer) (Replaces: 7733P532-60) |
|
$ 21.03 | |||||
| 3 | 7101P501-60 | Screw |
|
- | |||||
| 4 | 3601F221-45 | Baffle, Vent Cover |
|
$ 28.30 | |||||
| 5 | WPW10207928 | Membrane Switch (Replaces: W10207928) |
|
$ 272.84 | |||||
| 6 | W10202563 | Cooktop |
|
- | |||||
| 7 | W10166279 | Shield, Control |
|
- | |||||
| 8 | W10279069 | Panel, Cntll Shield (stainless) |
|
$ 201.73 | |||||
| 8 | 7720P531-60 | Panel, Cntll Shield (black) |
|
$ 139.61 | |||||
| 9 | W10185606 | Panel, Cntl (lwr) |
|
$ 130.08 | |||||
| 10 | WP7733P526-60 | Knob, Valve (Replaces: 7733P526-60) |
|
Immediately | $ 25.16 | ||||
| 11 | 7518P485-60 | Grate, Burner |
|
- | |||||
| 12 | WPW10244447 | Cap, Burner (set) (Replaces: W10244447) |
|
$ 200.90 | |||||
| 13 | WPW10406878 | Base, Burner (16k Rf) (Replaces: 8286183) |
|
$ 107.48 | |||||
| 13 | WPW10406243 | Base, Burner (5k Lr) (Replaces: 8286181) |
|
Immediately | $ 39.08 | ||||
| 13 | WPW10406797 | Base, Burner (12k Rr, Lf) (Replaces: 8286182) |
|
$ 92.91 | |||||
| 14 | 3807F769-51 | Support, Cntrl Pnl |
|
- | |||||
| 15 | WPW10177195 | Control, (erc) (Replaces: 8507P389-60) |
|
Immediately | $ 344.72 | ||||
| 16 | 7724P201-60 | Cover, Vent |
|
- |
