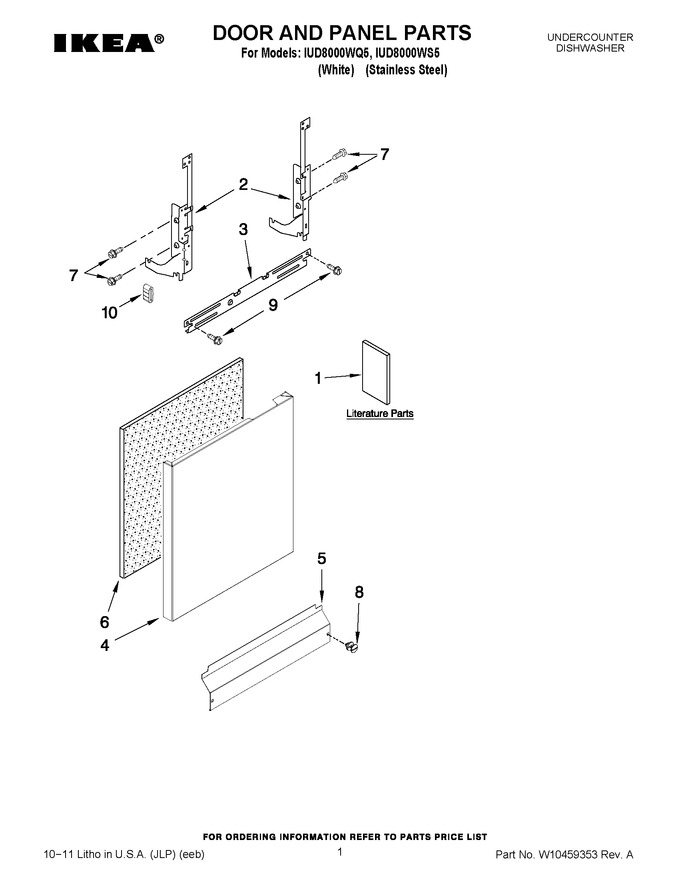

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10142800 | Tech Sheet |
|
- | |||||
| 1 | W10435039 | Instructions, Installation |
|
- | |||||
| 1 | W10398601 | Energy Guide |
|
- | |||||
| 1 | W10240250 | Guide, Use & Care (english/french) |
|
- | |||||
| 1 | W10240251 | Guide, Use & Care (spanish) |
|
- | |||||
| 2 | W11806566 | Arm, Hinge (left) (Replaces: W10143374) |
|
Immediately | $ 71.77 | ||||
| 2 | W11613572 | Arm, Hinge (right) (Replaces: W10143373) |
|
Immediately | $ 83.93 | ||||
| 3 | 8268983 | Stiffener, Door |
|
$ 38.77 | |||||
| 4 | WPW10274896 | Panel Front (white) (Replaces: W10274896) |
|
$ 362.51 | |||||
| 4 | WPW10274902 | Panel Front (stainless) (Replaces: W10274902) |
|
Immediately | $ 408.40 | ||||
| 5 | WPW10441007 | Access Panel (white) (Replaces: W10441007) |
|
$ 170.94 | |||||
| 5 | W11763736 | Access Panel (black) (Replaces: W10441006) |
|
Immediately | $ 42.25 | ||||
| 6 | WPW10073520 | Insulation, Door (Replaces: W10073520) |
|
$ 96.23 | |||||
| 7 | WPW10109200 | Screw (Replaces: 489470) |
|
Immediately | $ 8.80 | ||||
| 8 | WPW10503549 | Fastener (white) (Replaces: W10331793) |
|
Immediately | $ 7.77 | ||||
| 8 | WPW10503548 | Fastener (black) (Replaces: W10331789) |
|
Immediately | $ 30.39 | ||||
| 9 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 10 | WP8268961 | Pad, Friction (Replaces: 8268961) |
|
Immediately | $ 5.93 |
